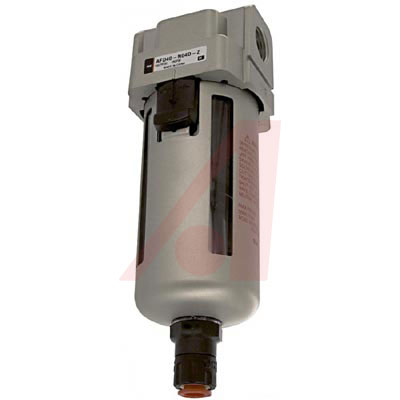

SMC AFD40-N04D-Z micro mist separator modular, AFD MASS PRO
The exhaust port for auto drain comes with φ 3⁄8" One-Touch fitting applicable to: AF30-60, AFM30/40 and AFD30/40. Applicable tube O.D. for auto drain connection should be φ 3⁄8" for NPT port sizes. The AFM20 with auto drain uses a M5 × 0.8 thread. The new RoHS-Compliant versions of all AF/AFD/AFM mist separators are marked with a suffix of -A.
**Features:**
* 0.01 Micron Particle Filter with Oil Removal to 0.008 ppm
* Operating Pressure: 150 psi
* Large Capacity Bowl with Autodrain
* Use AF And AFM as Pre-Filter for Best Element Life
* Name Plate and Caution Plate for Bowl in Imperial Units psi, °F
* Other Sizes Available
高度 165 mm
直径 70.0 mm
Body Size 40 in. in.
Brand/Series AFD Series
Diameter 70 mm mm
Flow Rate 600 l/min
For Use With AF Series
Height 6.496" 165mm
Material Aluminum Die Cast
Material, Bowl Polycarbonate
Pressure, Operating 1.0 MPa Max.
Proof Pressure 1.5 MPa MPa
Size, Port 1⁄2 " NPT " NPT
Temperature, Ambient -5 to +60 °C °C
Thread Type NPT
Type Mist Separator
RoHS标准 RoHS Compliant
