AFC226M50E16T-F

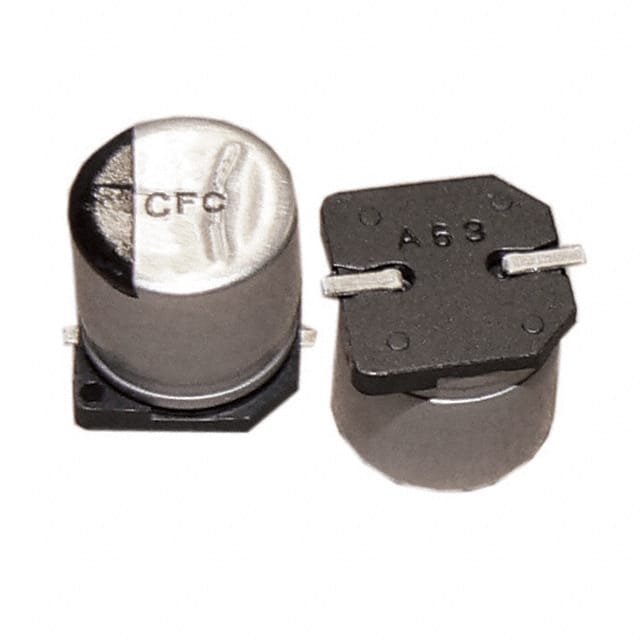

AFC226M50E16T-F图片1
AFC226M50E16T-F图片2
AFC226M50E16T-F图片3
AFC226M50E16T-F图片4
AFC226M50E16T-F概述

Cap Aluminum Lytic 22uF 50V 20% 8 X 6.2mm SMD 9.1Ω 120mA 1000H 105℃ T/R

Type AFC Capacitors are the choice for high-frequency filtering. At 100 kHz, most ratings can handle more than twice the ripple current of type AHA. With solid performance at temperatures down to –55 ° C, Type AFC has more than 90% capacitance retention at –20 ° C and 1 kHz. With low impedance to beyond 100 kHz, it is ideal for higher power DC/DC converters. The vertical cylindrical cases make for easy automatic mounting and reflow soldering, and offer big savings and higher capacitance compared to tantalum capacitors.

Highlights

• +105°C, Up to 1000 Hour Load Life

• Capacitance Range: 1 µF to 1500 µF

• Voltage Range: 6.3 Vdc to 50 Vdc

AFC226M50E16T-F中文资料参数规格
技术参数

额定电压DC 50.0 V

电容 22 µF

等效串联电阻ESR 9.10 Ω

容差 ±20 %

纹波电流 120 mA

工作温度Max 105 ℃

工作温度Min -55 ℃

额定电压 50 V

封装参数

安装方式 Surface Mount

引脚数 2

封装 SMD

外形尺寸

高度 6.2 mm

直径 8.00 mm

封装 SMD

其他

产品生命周期 Active

包装方式 Tape & Reel TR

寿命(小时) 2000h @85℃

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买AFC226M50E16T-F
型号: AFC226M50E16T-F
制造商: Cornell Dubilier ElectronicsCDE
描述:Cap Aluminum Lytic 22uF 50V 20% 8 X 6.2mm SMD 9.1Ω 120mA 1000H 105℃ T/R
替代型号AFC226M50E16T-F
型号/品牌 代替类型 替代型号对比

AFC226M50E16T-F

Cornell Dubilier ElectronicsCDE

当前型号

当前型号

AFC226M50E16B-F

Cornell Dubilier ElectronicsCDE

功能相似

AFC226M50E16T-F和AFC226M50E16B-F的区别
