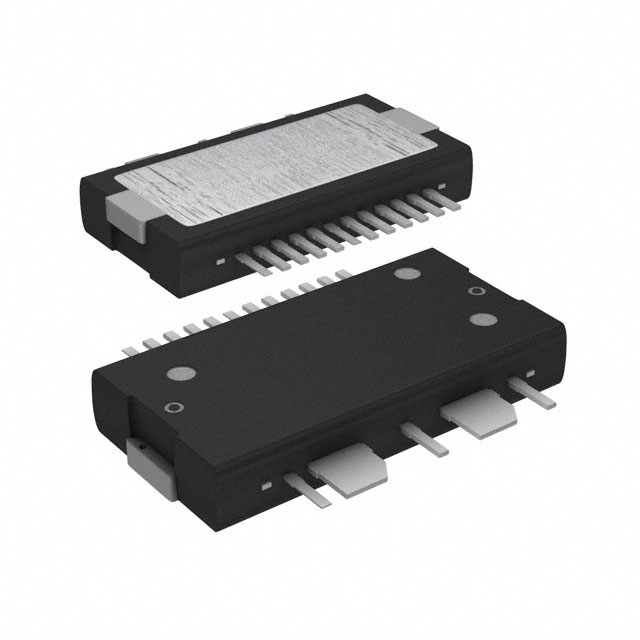

Amplifier,2300 to 2690MHz, 52W, Typ Gain in dB is 27.5 @ 2590MHz, 28V, LDMOS, SOT1730
Overview
The A2I25H060N wideband integrated circuit is an asymmetrical Doherty designed with on-chip matching that makes it usable from 2300 to 2690 MHz. This multi-stage structure is rated for 20 to 32 V operation and covers all typical cellular base station modulation formats.
MoreLess
## Features
* Advanced High Performance In-Package Doherty
* On-Chip Matching 50 Ohm Input, DC Blocked
* Integrated Quiescent Current Temperature Compensation with Enable/Disable Function
* Designed for Digital Predistortion Error Correction Systems
* RoHS Compliant
## Features RF Performance Tables
### 2600 MHz
Typical Doherty Single-Carrier W-CDMA Characterization Performance: VDD = 28 Vdc, IDQ1A = 26 mA, IDQ2A = 163 mA, VGS1B = 1.7 Vdc, VGS2B = 1.3 Vdc, Pout = 10.5 W Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.- .
- *Frequency** | **Gps
- .
- * | **PAE
- .
- * | **ACPR
- .
- *
\---|---|---|---
2496 MHz| 27.1| 40.9| –31.5
2590 MHz| 27.5| 40.9| –34.0
2690 MHz| 27.1| 39.4| –34.7
### 2300 MHz
Typical Doherty Single-Carrier W-CDMA Performance: VDD = 28 Vdc, IDQ1A = 28 mA, IDQ2A = 177 mA, VGS1B = 1.8 Vdc, VGS2B = 1.3 Vdc, Pout = 10.5 W Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.- .
- *Frequency** | **Gps
- .
- * | **PAE
- .
- * | **ACPR
- .
- *
\---|---|---|---
2300 MHz| 26.7| 38.9| –33.7
2350 MHz| 27.0| 38.9| –34.8
2400 MHz| 27.1| 39.0| –34.7
