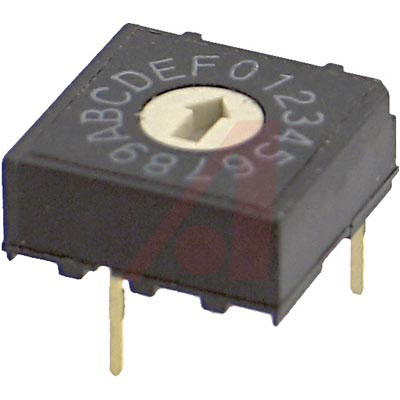

Switch DIP SP16T 16 Flush Screwdriver 0.025A 24VDC PC Pins Thru-Hole Tube
16 Positions Rotary DIP Switch, PCB Mounting, Contact Resistance 200 Milliohms
* RoHS compliant
* Series includes top-actuated, side-actuated, flat, and extended-shaft models
* The rotor has an O-ring sealed construction that prevents the ingress of dirt and dust
* Two different types of terminal arrangements are available for each mode
* O-Ring Sealed Construction That Prevents the Ingress of Dirt and Dust
* Rating: 25 mA @ 24 VDC
* Insulation Resistance: 100 M @ 250 VDC
* Operating Temperature: -25° to +80°C
额定电压DC 24 V
额定电流 25 mA
绝缘电阻 ≥100MΩ @250VDC
方向 Vertical
针脚数 16
接触电阻 ≤200 MΩ
开断电压 24.0 V
额定电流Max 0.025 A
额定电压 24 VDC
额定电压DC Max 24 V
安装方式 Through Hole
引脚间距 2.54 mm
长度 9.8 mm
宽度 9.9 mm
高度 4.5 mm
引脚间距 2.54 mm
工作温度 -25℃ ~ 80℃
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
