AL03006-269.8K-138-G1

AL03006-269.8K-138-G1图片1
AL03006-269.8K-138-G1图片2
AL03006-269.8K-138-G1图片3
AL03006-269.8K-138-G1图片4
AL03006-269.8K-138-G1图片5
AL03006-269.8K-138-G1图片6
AL03006-269.8K-138-G1图片7
AL03006-269.8K-138-G1图片8
AL03006-269.8K-138-G1概述

Thermistor NTC 500KΩ 10% 2Pin Axial 4567K Bulk Automotive

NTC Thermistor 500k DO-204AH, DO-35, Axial


得捷:
THERM NTC 500KOHM 4567K DO35


艾睿:
&l;h4&g;&l;strong&g;Other Related Documents:-&l;/strong&g;&l;a href="https://www.arrow.com/en/~/media/7df7a2a93eeb4abbaf19228b2fc85d23.ashx?h=16&a;thn=1&a;w=16"&g;Glass Diode Product Spotlight&l;/a&g;&l;/h4&g;


Allied Electronics:
THERMISTOR GLASS 500K OHM DO-35


CDI:
NTC Therm,GlassEncap,500Kohm,10%,AxialWireLeads


AL03006-269.8K-138-G1中文资料参数规格
技术参数

电阻 500 kΩ

阻值偏差 ±10 %

工作温度Max 204 ℃

工作温度Min -50 ℃

封装参数

安装方式 Through Hole

引脚数 2

封装 DO-35-2

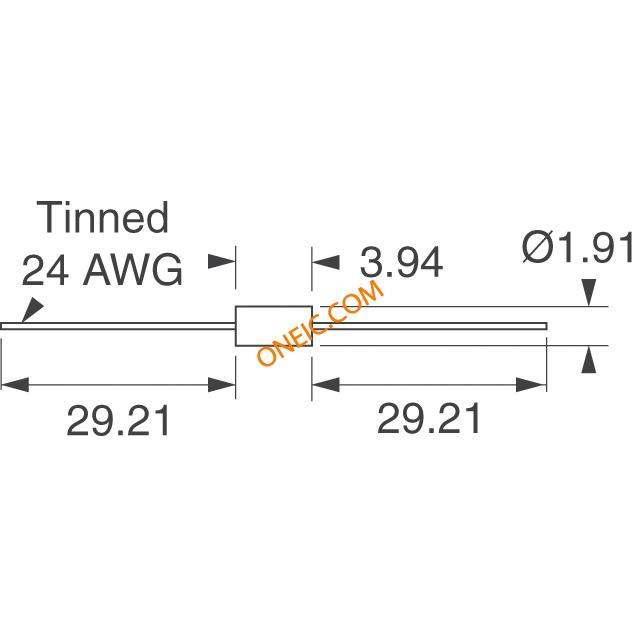

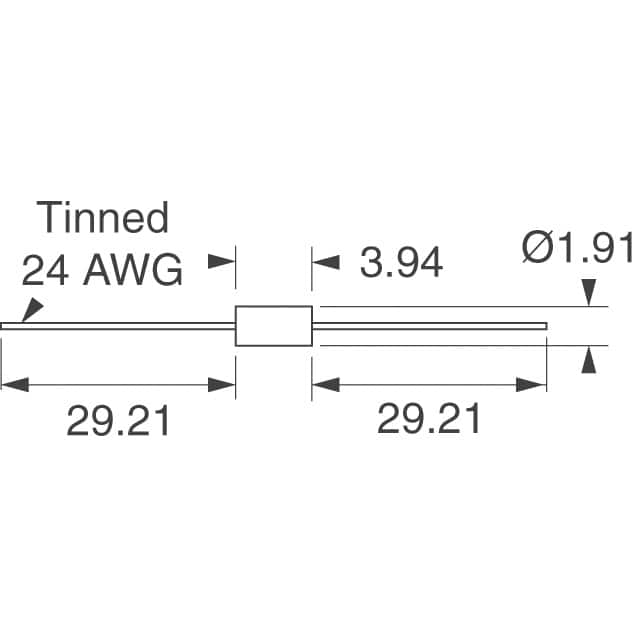

外形尺寸

长度 3.93 mm

宽度 1.9 mm

高度 3.93 mm

封装 DO-35-2

物理参数

工作温度 -50℃ ~ 204℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买AL03006-269.8K-138-G1
型号: AL03006-269.8K-138-G1
描述:Thermistor NTC 500KΩ 10% 2Pin Axial 4567K Bulk Automotive
