AW 2K5中文资料参数规格
技术参数
额定功率 4 W
电阻 2.5 kΩ
其他
Type of potentiometer shaft
Kind of potentiometer single turn
Resistance 2.5kΩ
Power 4W
Tolerance ±10%
Shaft diameter 6mm
Characteristics linear
Thread length 8mm
Track material wirewound
Shaft length 42mm
Shaft surface smooth
Fastening thread M10x0,75
L shaft length 50mm
Electrical rotation angle 280 ±5°
Mechanical rotation angle 300 ±10°
Linearity tolerance ±2%
Max. operating voltage 500V DC
Dimensions see
在线购买AW 2K5
型号： AW 2K5
制造商：
TT Electronics

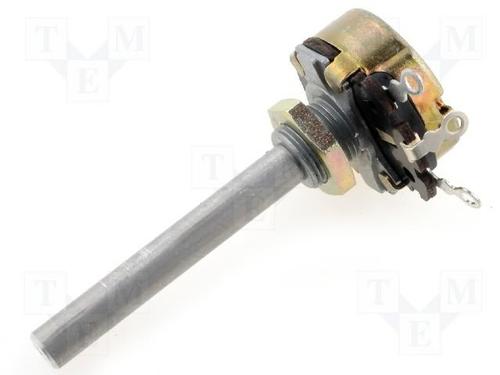

描述：Potentiometer: shaft; single turn; 2.5kΩ; 4W; ±10%; 6mm; wirewound
