AW 2R5中文资料参数规格
技术参数
额定功率 4 W
电阻 2.5 Ω
其他
Type of potentiometer shaft
Kind of potentiometer single turn
Resistance 2.5Ω
Power 4W
Tolerance ±20%
Shaft diameter 6mm
Characteristics linear
Thread length 8mm
Track material wirewound
Shaft length 42mm
Shaft surface smooth
Fastening thread M10x0,75
L shaft length 50mm
Electrical rotation angle 280 ±5°
Mechanical rotation angle 300 ±10°
Linearity tolerance ±2%
Max. operating voltage 500V DC
Dimensions see
符合标准
RoHS标准 RoHS Compliant
在线购买AW 2R5
型号： AW 2R5
制造商：
TT Electronics

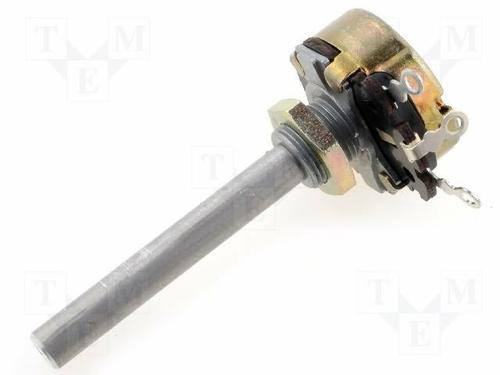

描述：Potentiometer: shaft; single turn; 2.5Ω; 4W; ±20%; 6mm; wirewound
