APXA6R3ARA821MJC0G

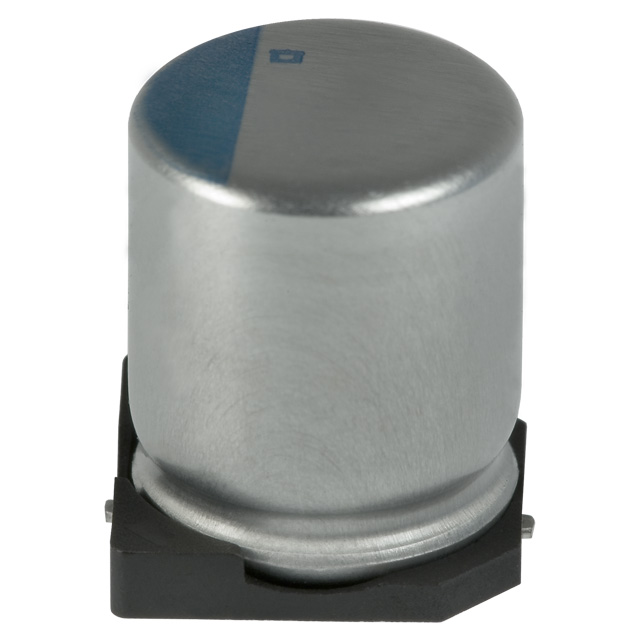

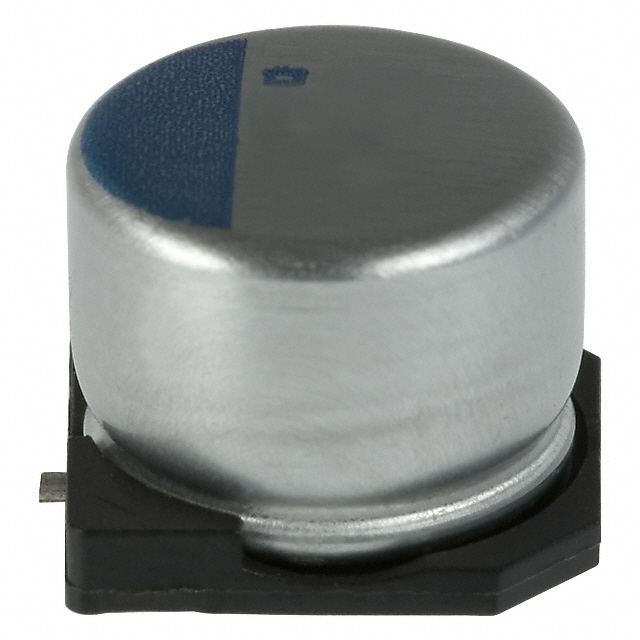

Cap Aluminum Polymer 820uF 6.3VDC 20% 10 X 12.2mm SMD 0.01Ω 5500mA 2000H 105℃ T/R

铝聚合物器 径向，Can - SMD 10 毫欧 105°C 时为 15000 小时

艾睿:

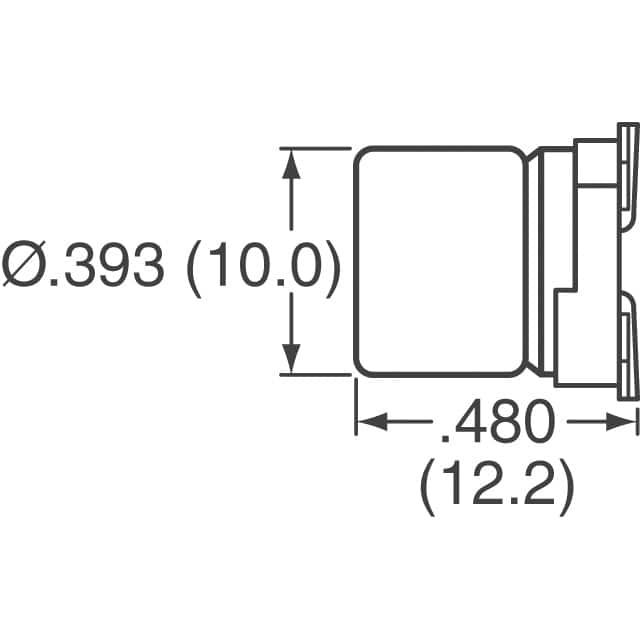

Thanks to United Chemi-con and their APXA6R3ARA821MJC0G conductive polymer aluminum solid capacitor, you can feel rest assured that your integrated circuit will be protected from sudden changes in the load. It can withstand a voltage of 6.3 VDC. It has 2 terminals. This product is 12.2 mm tall with a diameter of 10 mm. It has a tolerance of 20%. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C. Its leakage current is 1030@2Min μA.

Verical:
Cap Aluminum Polymer 820uF 6.3VDC 20% 10 X 12.2mm SMD 0.01 Ohm 5500mA 15000h 105C T/R

MASTER:
Cap Aluminum Polymer 820uF 6.3VDC 20% 10 X 12.2mm SMD 0.01 Ohm 5500mA 15000h 105°C T/R

Electro Sonic:
Cap Aluminum Polymer 820uF 6.3VDC 20% 10 X 12.2mm SMD 0.01 Ohm 5500mA 15000h 105°C T/R
