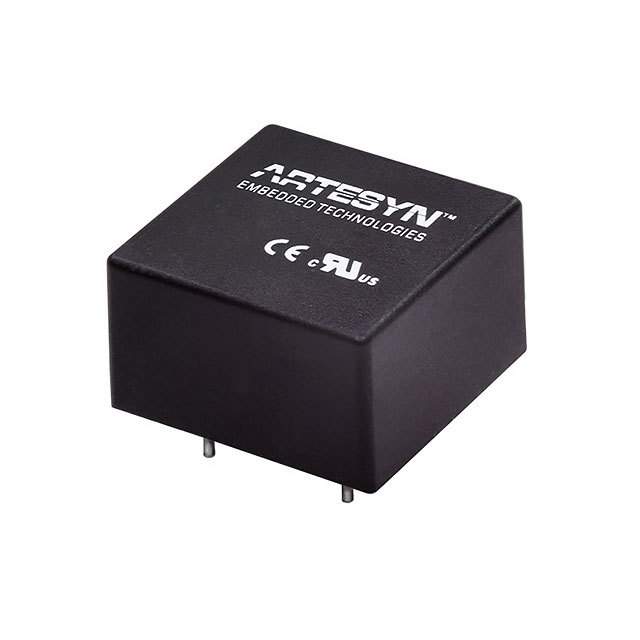

AYA01CC48-L

直流/直流转换器 隔离式板载, ITE, 2输出, 3 W, 15 V, 100 mA, -15 V, 100 mA

The from is a 3W AYA series dual output DC/DC converter module. It features ultra-wide 2:1 input range with excellent output voltage regulation. The AYA 3W series can deliver up to 3W output power from the dual output module with high efficiency and excellent thermal performance over an operating ambient temperature range of -40°C to +85°C with derating. Suitable for a wide range of applications in nearly any industry, the AYA 3W series was particularly designed with battery operated equipment, instrumentation and distributed power applications and other space critical applications in mind.

.

Input voltage range from 36VDC to 75VDC

.

Output voltage is ±15VDC

.

Output current is ±0.1A

.

Efficiency is 85%

.

I/O isolation voltage is 1500VDC, isolation resistance is 1000Mohm, insulation capacitance is 100pF

.

Safety cUL/UL 60950-1, IEC/EN 60950-1, CE mark approvals

.

Ultra compact DIP package 0.55" x 0.55" x 0.31"

.

Switching frequency is 100KHz
