串行16位DAC,电源电压2.7到5.5V
Product Details

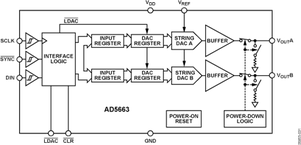

The , a member of th _nano_DAC® family, is a low power, dual, 16-bit buffered voltage-out DAC that operates from a single 2.7 V to 5.5 V supply and is guaranteed monotonic by design.
The AD5663 requires an external reference voltage to set the output range of the DAC. The part incorporates a power-on reset circuit that ensures the DAC output powers up to 0 V or midscale AD5663BRMZ-1 and remains there until a valid write takes place. The part contains a power-down feature that reduces the current consumption of the device to 480 nA at 5 V and provides software-selectable output loads while in power-down mode.
The low power consumption of this part in normal operation makes it ideally suited to portable, battery-operated equipment. The power consumption is 1.25 mW at 5 V, going down to 2.4 μW in power-down mode.
The on-chip precision output amplifier of the AD5663 allows rail-to-rail output swing to be achieved.
The AD5663 uses a versatile, 3-wire serial interface that operates at clock rates up to 50 MHz and is compatible with standard SPI®, QSPI™, MICROWIRE™, and DSP interface standards.
**Product Highlights**
1. Dual 16-bit DAC; relative accuracy of ±12 LSBs maximum.
2. Available in 10-lead MSOP and 10-lead, 3 mm × 3 mm LFCSP_WD packages.
3. Low power; typically consumes 0.6 mW at 3 V and 1.25 mW at 5 V.
4. 7 μs maximum settling time.
**Applications**
- .
- Process control
- .
- Data acquisition systems
- .
- Portable battery-powered instruments
- .
- Digital gain and offset adjustment
- .
- Programmable voltage and current sources
- .
- Programmable attenuators
### Features and Benefits
- .
- Low power, dual 16-bit nanoDAC
- .
- Relative accuracy: ±12 LSBs maximum
- .
- Guaranteed monotonic by design
- .
- 10-lead MSOP and 3 mm × 3 mm LFCSP_WD
- .
- 2.7 V to 5.5 V power supply
- .
- Per channel power-down
- .
- Power-on reset to zero scale or midscale
- .
- Hardware LDAC and CLR functions
- .
- Serial interface; up to 50 MHz
