ADG506AKPZ-REEL

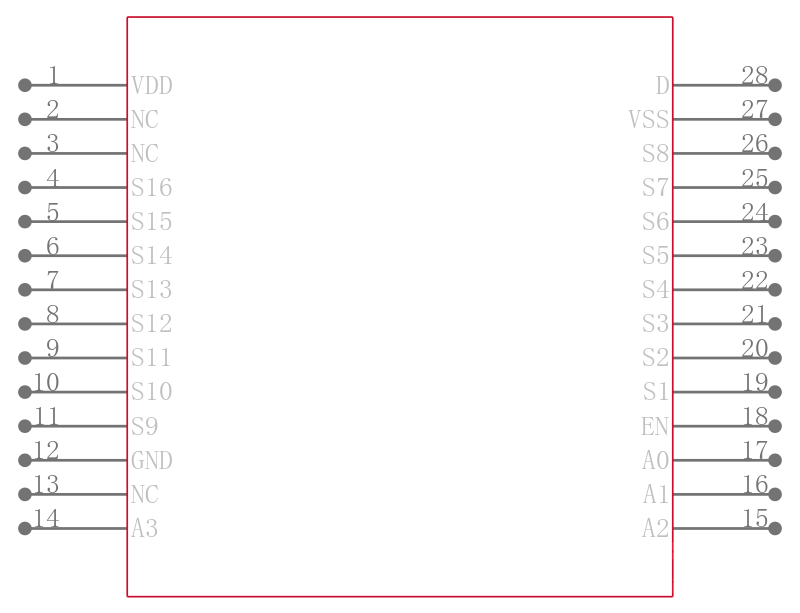

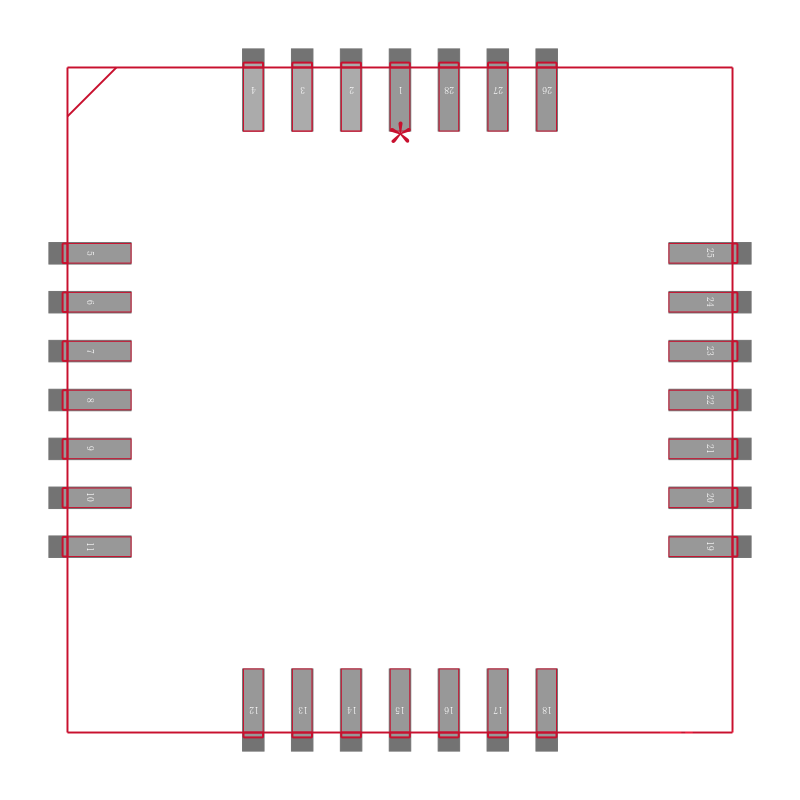

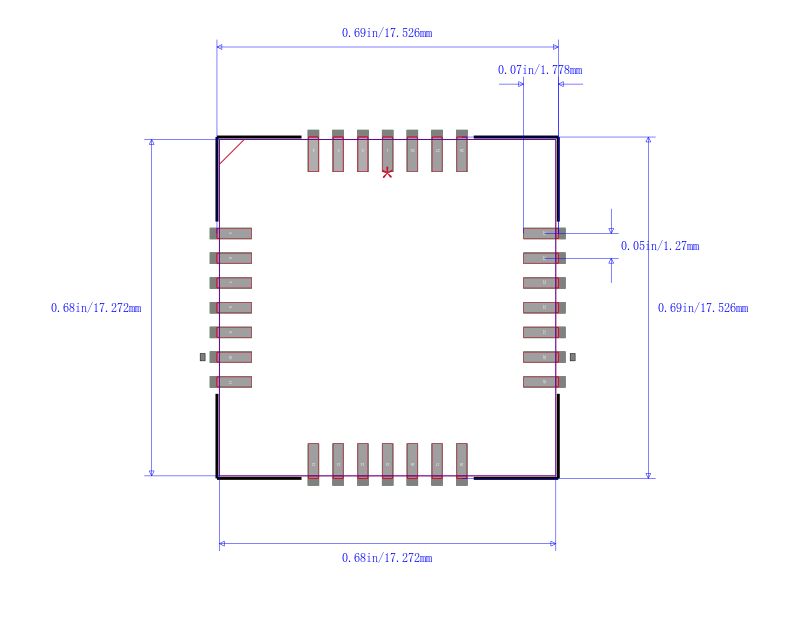

Ic Multiplexer 16x1 28plcc

Product Details

The ADG506A is a CMOS monolithic analog multiplexer with 16 channels. The ADG506A switches one of 16 inputs to a common output, depending on the state of four binary addresses and an enable input. It has TTL and 5 V CMOS logic compatible digital inputs.

The ADG506A is designed on an enhanced LC2MOS process, which gives an increased signal capability of VSS to VDD and enables operation over a wide range of supply voltages. The devices can operate comfortably anywhere in the 10.8 V to 16.5 V single or dual supply range. This multiplexer also features high switching speeds and low RON.

### Features and Benefits

.

44 V Supply Maximum Ratings

.

VSS to VDD Analog Signal Range

.

Single/Dual Supply Specifications

.

Wide Supply Range 10.8 V to 16.5 V

.

Extended Plastic Temperature Range

-40°C to +85°C

.

Low Power Dissipation 28 µW max

.

Low Leakage 20 pA typ

.

Superior Alternative to DG506A/HI-506

.

28-Lead DIP/SOIC/PLCC/LCCC/TSSOP

Packages
