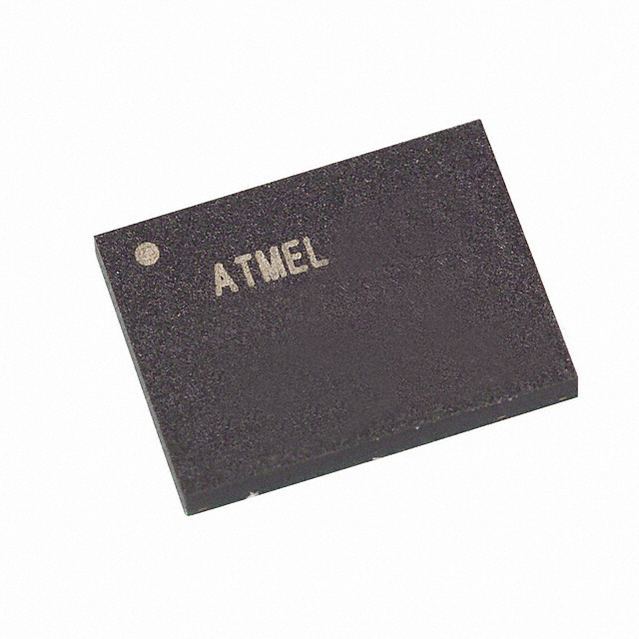

AT45DB161B-CNC

Flash Serial-SPI 3V/3.3V 16M-bit 20ns 8Pin CASON

Description

The AT45DB161B is a 2.5-volt or 2.7-volt only, serial interface Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. Its 17,301,504 bits of memory are organized as 4096 pages of 528 bytes each. In addition to the main memory, the AT45DB161B also contains two SRAM data buffers of 528 bytes each. The buffers allow receiving of data while a page in the main memory is being reprogrammed, as well as writing a continuous data stream.

Features

• Single 2.5V - 3.6V or 2.7V - 3.6V Supply

• Serial Peripheral Interface SPI Compatible

• 20 MHz Max Clock Frequency

• Page Program Operation

   – Single Cycle Reprogram Erase and Program

   – 4096 Pages 528 Bytes/Page Main Memory

• Supports Page and Block Erase Operations

• Two 528-byte SRAM Data Buffers – Allows Receiving of Data while Reprogramming of Nonvolatile Memory

• Continuous Read Capability through Entire Array

   – Ideal for Code Shadowing Applications

• Low Power Dissipation

   – 4 mA Active Read Current Typical

   – 2 µA CMOS Standby Current Typical

• Hardware Data Protection Feature

• 100% Compatible to AT45DB161

• 5.0V-tolerant Inputs: SI, SCK, CS, RESET and WP Pins

• Commercial and Industrial Temperature Ranges

• Green Pb/Halide-free Packaging Options
