ADV7310KST

多格式216 MHz的视频编码器与六NSV 12位DAC Multiformat 216 MHz Video Encoder with Six NSV 12-Bit DACs

GENERAL DESCRIPTION

The ADV®7310/ADV7311 is a high speed, digital-to-analog encoder on a single monolithic chip. It includes six high speed NSV video D/A converters with TTL compatible inputs.

The ADV7310/ADV7311 has separate 8-/10-/16-/20-bit input ports that accept data in high definition and/or standard definition video format. For all standards, external horizontal, vertical, and blanking signals or EAV/SAV timing codes control the insertion of appropriate synchronization signals into the digital data stream and therefore the output signal.

FEATURES

High Definition Input Formats

   8-/10-, 16-/20-, 24-/30-Bit 4:2:2, 4:4:4 Parallel YCrCb Compliant with:

      SMPTE 293M 525p

      BTA T-1004 EDTV2 525p

      ITU-R BT.1358 625p/525p

      ITU-R BT.1362 625p/525p

      SMPTE 274M 1080i at 30 Hz and 25 Hz

      SMPTE 296M 720p

      RGB in 3 X 10-Bit 4:4:4 Input Format

   HDTV RGB Supported:

      RGB, RGBHV

      Other High Definition Formats Using Async Timing Mode

   High Definition Output Formats

   YPrPb Progressive Scan EIA-770.1, EIA-770.2

   YPrPb HDTV EIA 770.3

   RGB, RGBHV

   CGMS-A 720p/1080i

   Macrovision Rev 1.1 525p/625p

.

   CGMS-A 525p

Standard Definition Input Formats

   CCIR-656 4:2:2 8-/10-/16-/20-Bit Parallel Input

Standard Definition Output Formats

   Composite NTSC M/N

   Composite PAL M/N/B/D/G/H/I, PAL-60

   SMPTE 170M NTSC Compatible Composite Video

   ITU-R BT.470 PAL Compatible Composite Video

   S-Video Y/C

   EuroScart RGB

   Component YPrPb Betacam, MII, SMPTE/EBU N10

   Macrovision Rev 7.1.L1

.

      CGMS/WSS

      Closed Captioning

GENERAL FEATURES

Simultaneous SD and HD Inputs and Outputs

Oversampling up to 216 MHz

Programmable DAC Gain Control

Sync Outputs in All Modes

On-Board Voltage Reference

Six 12-Bit NSV Precision Video DACs

2-Wire Serial I2C® Interface

Dual I/O Supply 2.5 V/3.3 V Operation

Analog and Digital Supply 2.5 V

On-Board PLL

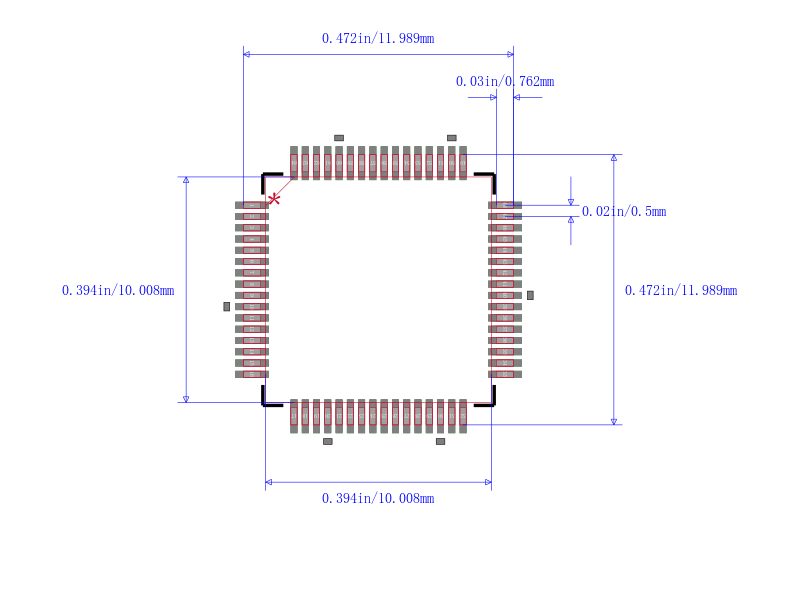

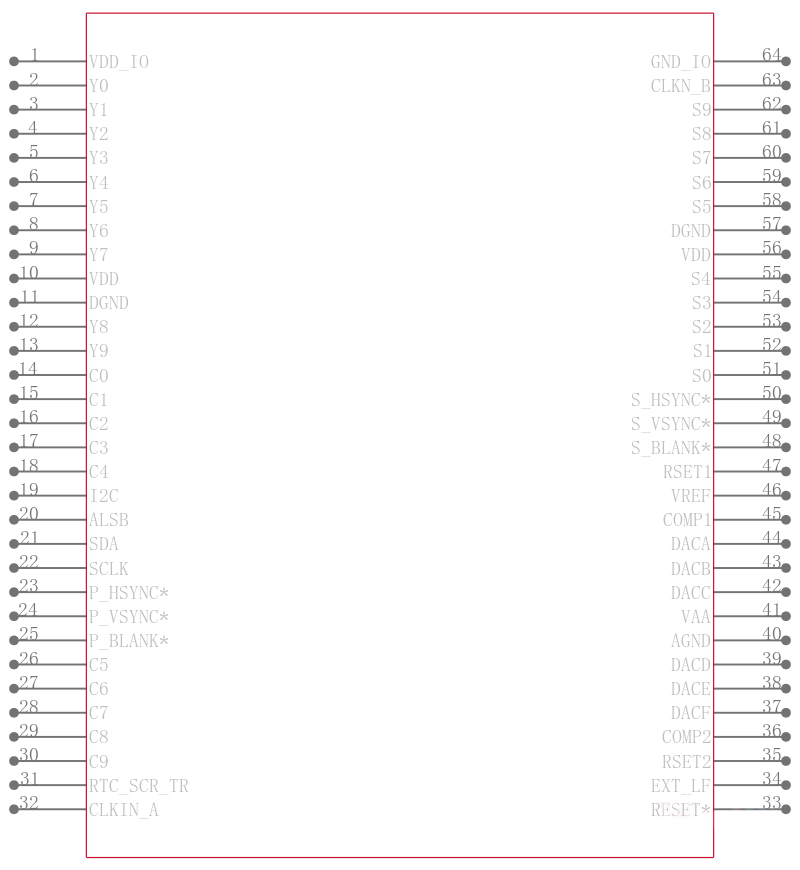

64-Lead LQFP Package

Lead Pb Free Product

APPLICATIONS

  High End DVD

  High End PS DVD Recorders/Players

  SD/Prog Scan/HDTV Display Devices

  SD/HDTV Set Top Boxes

  Professional Video Systems
