电流输出/串行输入、16位/14位DAC
Product Details
The /AD5553 are precision 16-/14-bit, low power, current output, small form factor digital-to-analog converters DACs. They are designed to operate from a single 5 V supply with a ±10 V multiplying reference.
The applied external reference, VREF, determines the full-scale output current. An internal feedback resistor RFB facilitates the R-2R and temperature tracking for voltage conversion when combined with an external op amp.
A serial-data interface offers high speed, 3-wire microcontroller-compatible inputs using serial data in SDI, clock CLK, and chip select CS.

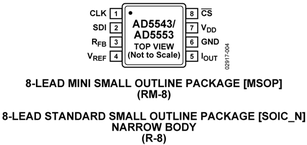

The AD5543/AD5553 are packaged in ultracompact 3 mm × 4.7 mm 8-lead MSOP and 8-lead SOIC packages.
**Applications**
- .
- Automatic test equipment
- .
- Instrumentation
- .
- Digitally controlled calibration
- .
- Industrial control PLCs
### Features and Benefits
- .
- 16-bit resolution
- .
- ±1 LSB DNL
- .
- ±1 LSB INL
- .
- Low noise: 12 nV/√Hz
- .
- Low power: IDD = 10 μA
- .
- 0.5 μs settling time
- .
- 4-quadrant multiplying reference input
- .
- 2 mA full-scale current ± 20%, with VREF= 10 V
- .
- Built-in RFB facilitates voltage conversion
- .
- 3-wire interface
- .
- Ultracompact 8-lead MSOP and 8-lead SOIC packages
AD5543-EP supports defense and aerospace applications AQEC standard
- .
- Download AD5543-EP Data Sheet pdf
- .
- Military temperature range −55°C to +125°C
- .
- Controlled manufacturing baseline
- .
- One assembly/test site
- .
- One fabrication site
- .
- Enhanced product change notification
- .
- Qualification data available on request
