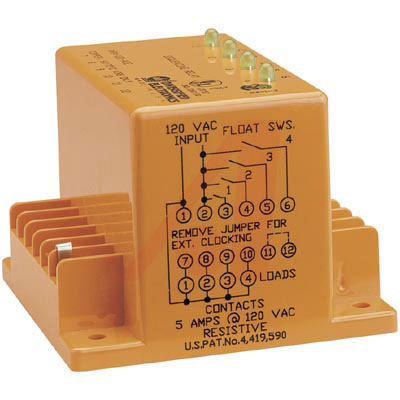

Relay; E-Mech; Alternating; Cur-Rtg 10A; Ctrl-V 120AC/DC; Vol-Rtg 240AC; Pnl-Mnt
The triplexor and quadraplexor alternating relays are designed for use in multiple load installations that are required to alternate in sequence while assuring equal run time on all loads. They also allow for additional loads to run in the event of excess load requirements. The triplexor and quadraplexor have the option of automatic alternations or external clocking alternations. When the factory installed jumper is in place the alternating action is initiated by a control switch, which is common with one side of the control voltage. When the jumper is removed the alternating action is initiated by an isolated normally open switch.
**Features:**
* LED Output Status Indicators
* Termination: #8-32 Screws
* Surface Mounting
* Outputs Externally Switched to Terminal 2
**Specifications:**
* Contact Rating: 5 A @ 240 VAC. Resistive
* Operating Temperature: –20°C to +55°C
* Dimensions L x W x H: 4.0" × 4.0" × 3.0"
* UL Listed and CSA Certified
