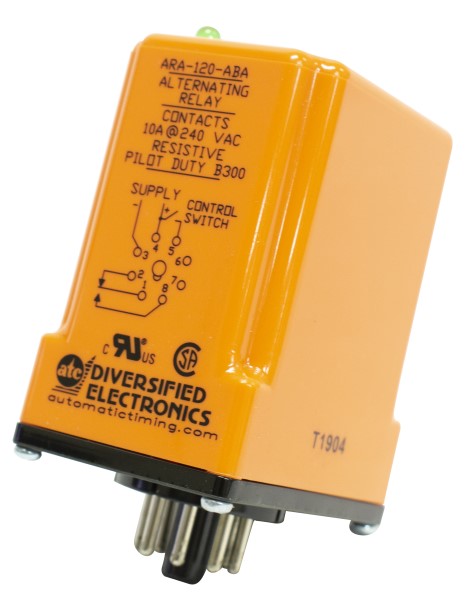

ARA-120-ABA

Relay; E-Mech; Alternating; SPDT; Cur-Rtg 10A; Ctrl-V 120AC/DC; Vol-Rtg 240AC; ARA Seri

Duplexors are used in control panels where two loads are required to alternate, providing equal run time between the loads. The alternating action is initiated by a control switch, which is common with one side of the control voltage. The output contacts will change state each time the control switch is opened, which alternates the two loads. The LED indicators show the output relay position.

**Features:**

* LED Relay Status Indicators

* Plug-In Termination

**Specifications:**

* Contact Rating: 10 Amp @ 240 VAC. Resistive

* Operating Temperature: –20°C to +55°C

* Dimensions L × W × H: 2.38" × 1.75" × 3.63"

* UL and Canadian UL Recognized
