标准LED-SMD

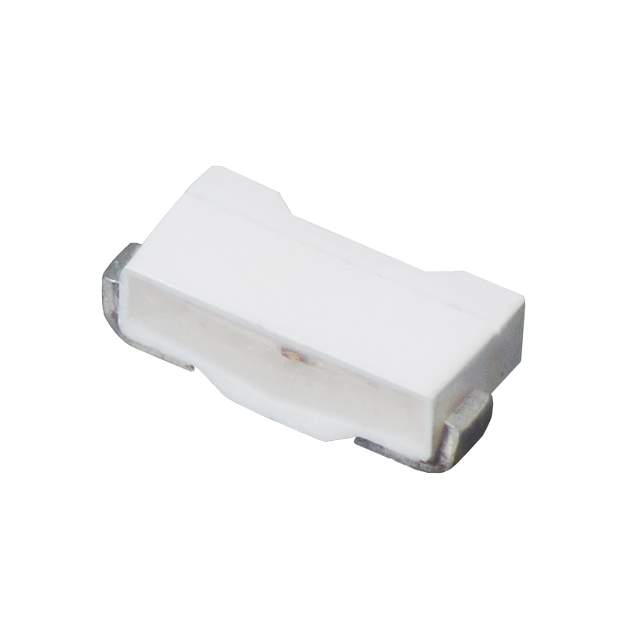

Yellow 590nm LED Indication - Discrete 2V 2-SMD, J-Lead
得捷: LED YELLOW CLEAR SMD R/A
艾睿: LED Uni-Color SB. Yellow 590nm 2-Pin SMD T/R
Verical: LED Uni-Color SB. Yellow 590nm 2-Pin SMD T/R
正向电压 2 V
波长 590 nm
发光强度 550 mcd
视角 110°
峰值波长 590 nm
耗散功率 75 W
测试电流 20 mA
正向电流 30 mA
正向电压Max 2.5 V
正向电流Max 30 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 75 mW
引脚数 2
封装 SMD-2
长度 2.8 mm
宽度 1.2 mm
高度 0.8 mm
颜色 Yellow
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
数据手册
