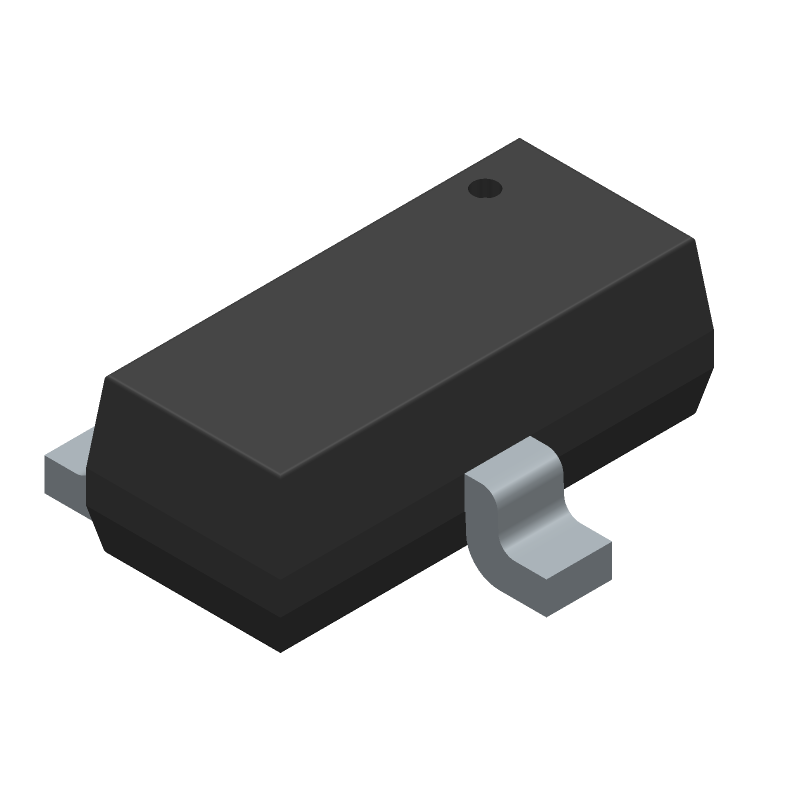

AZ23C6V2-7-F 编带
Zener Diode Array 1 Pair Common Anode 6.2V 300mW ±5% SOT-23-3
得捷:
DIODE ZENER ARRAY 6.2V SOT23-3
立创商城:
300mW
贸泽:
稳压二极管 300mW 6.2V Dual AEC-Q101 Qualified
艾睿:
This AZ23C6V2-7-F zener diode from Diodes Zetex is perfect for your circuit requiring a diode to operate in the reverse-breakdown region. Its maximum power dissipation is 300 mW. Its test current is 5 mA. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It is made in a dual common anode configuration. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. This zener device has a nominal voltage of 6.2 V and a voltage tolerance of 5%.
Allied Electronics:
Diode Zener 6.2V 5% 300mW SOT23
安富利:
Diode Zener Dual Common Anode 6.2V 5% 300mW 3-Pin SOT-23 T/R
富昌:
AZ23C6V2 Series 300 mW 6.2 V Dual Surface Mount Zener Diode - SOT-23
Chip1Stop:
Diode Zener Dual Common Anode 6.2V 5% 300mW 3-Pin SOT-23 T/R
Verical:
Diode Zener Dual Common Anode 6.2V 5% 300mW Automotive 3-Pin SOT-23 T/R
Win Source:
DIODE ZENER ARRAY 6.2V SOT23-3
触点数 3
额定电压DC 6.20 V
容差 ±5 %
额定功率 300 mW
耗散功率 300 mW
测试电流 5 mA
稳压值 6.2 V
额定功率Max 300 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 300 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 3.05 mm
宽度 1.4 mm
高度 1 mm
封装 SOT-23-3
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AZ23C6V2-7-F Diodes 美台 | 当前型号 | 当前型号 |
AZ23C6V2-7 美台 | 完全替代 | AZ23C6V2-7-F和AZ23C6V2-7的区别 |
AZ23C6V2-V-GS08 威世 | 功能相似 | AZ23C6V2-7-F和AZ23C6V2-V-GS08的区别 |
AZ23C6V8-V-GS08 威世 | 功能相似 | AZ23C6V2-7-F和AZ23C6V8-V-GS08的区别 |
