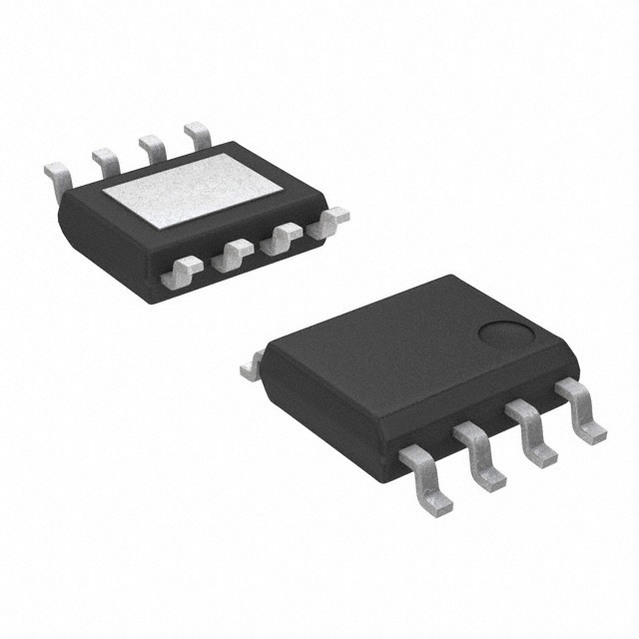

AP7165 系列 0.8 至 5 V 输出 600 mA 表面贴装 POK LDO 稳压器 - SOIC-8
AP7165 Series 600 mA Adjustable Surface Mount Voltage Regulator - SOIC-8EP
得捷:
IC REG LINEAR POS ADJ 600MA 8SO
立创商城:
正 Vin=5.5V Vout=0.8V~5V 600mA 60dB@1kHz
贸泽:
低压差稳压器 0.6A 250mV 2.2V-5.5V
艾睿:
Say goodbye to unstable voltages with this LDO AP7165-SPG-13 linear regulator from Diodes Zetex. Its typical dropout voltage at current is 0.3@500mA V. This device has a maximum power dissipation of 1900 mW. It has an overall accuracy of ±2.5 %. This voltage regulation device&s;s single output can produce a current up to 0.6 A. It only needs a voltage of at least 2.2 V while not exceeding 5.5 V to effectively power your circuit. With an adjustable output that has a voltage of 0.8 to 5 V, this is power management at its best. At a load regulation of 1% and line regulation of 0.015%/VTyp your circuit is capable of maintaining a constant voltage level at your output. Its maximum power dissipation is 1900 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. The maximum dropout voltage is 0.4@500mA V. Its polarity is positive.
Allied Electronics:
600mA LDO Regulator with POK SOP8
安富利:
LDO Regulator Pos 0.8V to 5V 0.6A 8-Pin SOP EP T/R
Verical:
LDO Regulator Pos 0.8V to 5V 0.6A 8-Pin SOP EP T/R
DeviceMart:
IC REG LDO ADJ .6A 8-SOIC
Win Source:
Linear Voltage Regulator IC Positive Adjustable 1 Output 0.8 V ~ 5 V 600mA 8-SOP-EP
输出接口数 1
输出电压 0.8V ~ 5V
输出电流 600 mA
耗散功率 1.9 W
静态电流 170 µA
跌落电压 0.3V @500mA
输入电压Max 5.5 V
输入电压Min 2.2 V
输出电流Max 0.6 A
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1900 mW
精度 ±2.5 %
输入电压 2.2V ~ 5.5V
安装方式 Surface Mount
引脚数 8
封装 SOP-8
长度 4.95 mm
宽度 3.95 mm
高度 1.5 mm
封装 SOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
