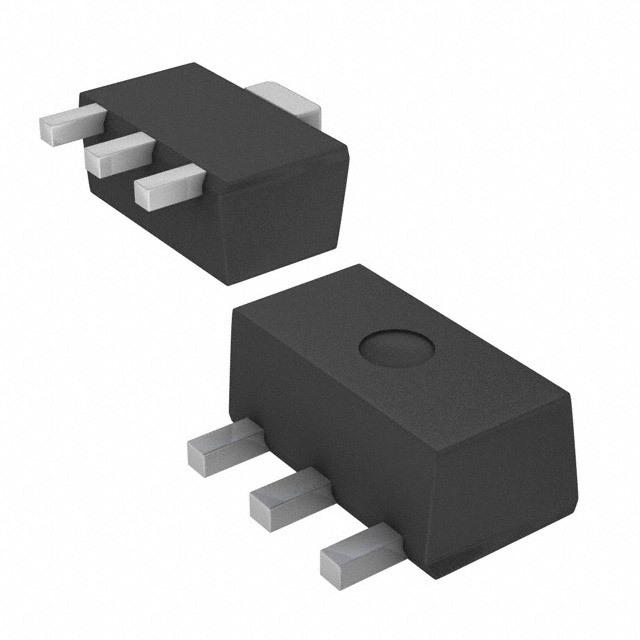

AP7365-18YG-13

低压差稳压器 LDO 1.8V OUT 600mA 35uA 2 to 6 Vin

PMIC - 稳压器 - 线性 正 固定 1 输出 600mA SOT-89-3

得捷:
IC REG LINEAR 1.8V 600MA SOT89-3

贸泽:
低压差稳压器 LDO 1.8V OUT 600mA 35uA 2 to 6 Vin

艾睿:
Use the LDO AP7365-18YG-13 linear regulator from Diodes Zetex to maintain a constant output voltage. Its typical dropout voltage at current is 0.37@600mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.6 A. With a small input voltage of 2 V and a max of 6 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 1% and line regulation of 0.2%/V. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. The maximum dropout voltage is 0.6@600mA V.

Win Source:
IC REG LDO 1.8V 0.6A SOT89-3
