低压差稳压器 1.5A Fast Transient Ultra-LDO Linear Reg
PMIC - 稳压器 - 线性 正 固定 输出 1.5A TO-252-3
得捷:
IC REG LINEAR 1V 1.5A TO252-3
贸泽:
低压差稳压器 1.5A Fast Transient Ultra-LDO Linear Reg
艾睿:
Control the voltage level of your circuit with this LDO AP7363-10D-13 linear regulator from Diodes Zetex. It has an overall accuracy of ±1.5 %. Its typical dropout voltage at current is 0.19@1.5A V. This voltage regulation device&s;s single output can produce a current up to 1.5 A. This will operate at a minimum voltage of 2.2 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 1 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 0.18%/ATyp and line regulation of 0.04%/VTyp. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. The maximum dropout voltage is 0.24@1.5A V. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C.
安富利:
LDO Regulator Pos 1V 1.5A 3-Pin TO-252 T/R
Verical:
LDO Regulator Pos 1V 1.5A 3-Pin2+Tab DPAK T/R
DeviceMart:
IC REG LDO 1V 1.5A TO252
输出接口数 1
输出电压 1 V
输出电流 1.5 A
跌落电压 0.19V @1.5A
输入电压Max 5.5 V
输入电压Min 2.2 V
输出电流Max 1.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±1.5 %
输入电压 2.2V ~ 5.5V
安装方式 Surface Mount
引脚数 3

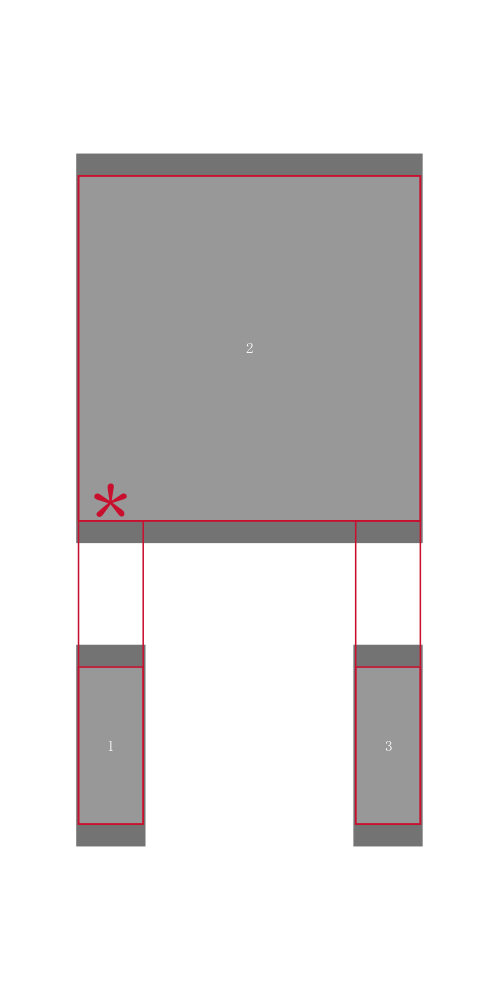

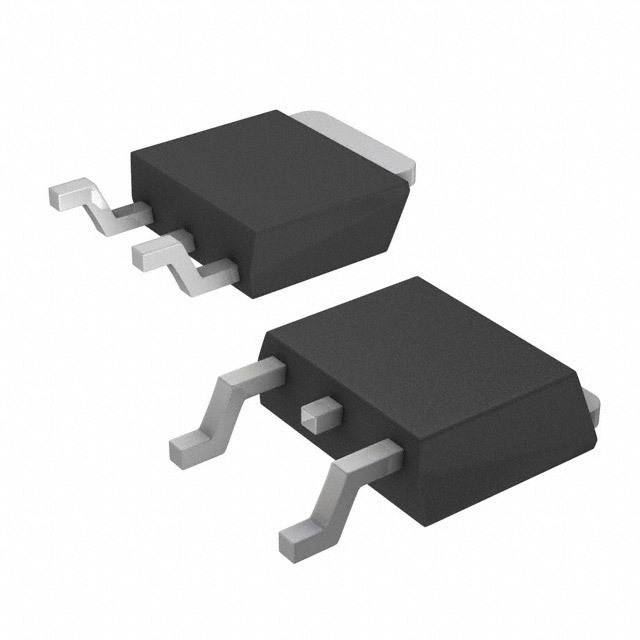

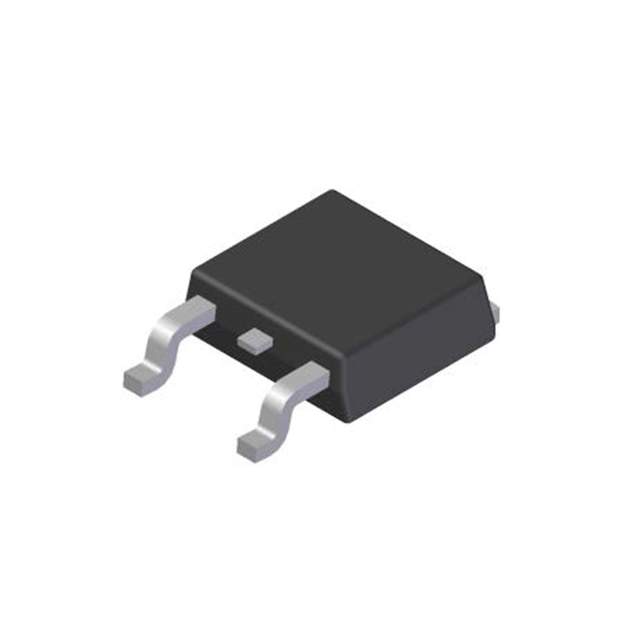

封装 TO-252-3
封装 TO-252-3
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
