AP3403FLJ-7概述
Conv DC-DC 2.3V to 5.5V Step Down Single-Out 0.7V to 5.5V 0.6A 6Pin UDFN EP T/R
Adjust the voltage level of your devices with this DC to DC converter from Zetex. With an output that has a voltage of Opr V and maximum output power of 125 W, this is power management at its best. This device has a typical switch current of 2.5 A. It has a switching frequency of -55 kHz. This converter has an operating temperature range of -40 °C to 85 °C.
AP3403FLJ-7中文资料参数规格
技术参数
输出接口数 1
输出电压 0.7V ~ 5.5V
输出电流 600 mA
开关频率 2 MHz
输入电压Max 5.5 V
输入电压Min 2.3 V
输出电压Max 5.5 V
输出电压Min 0.7 V
输出电流Max 0.6 A
工作温度Max 85 ℃
工作温度Min 40 ℃
电源电压Min 2.3 V
输入电压 2.3V ~ 5.5V
封装参数
安装方式 Surface Mount
引脚数 6

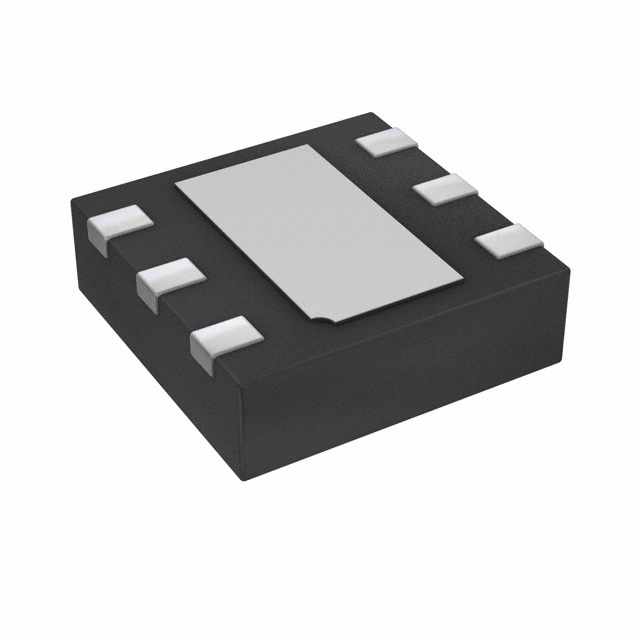

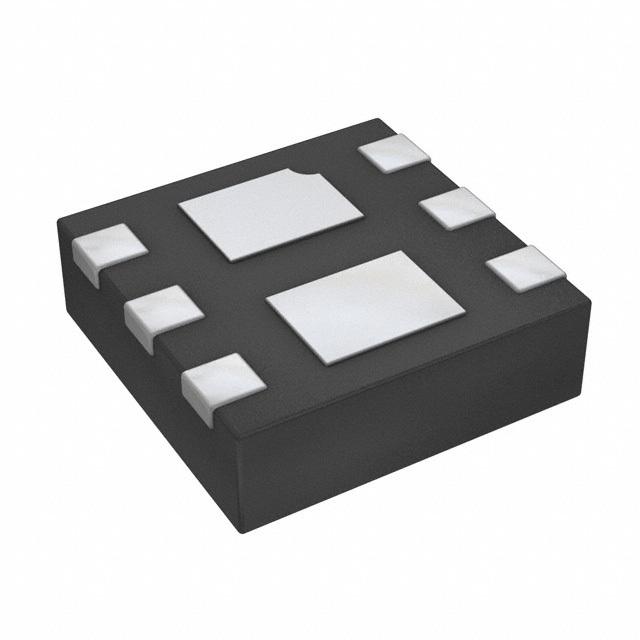

封装 UDFN1616-6
外形尺寸
封装 UDFN1616-6
物理参数
工作温度 -40℃ ~ 85℃ TA
其他
产品生命周期 Obsolete
包装方式 Tape & Reel TR
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
