稳压二极管
稳压二极管
立创商城:
正 Vin=18V Vout=3.3V 1A 60dB@180Hz
得捷:
IC REG LINEAR 3.3V 1A SOT223-3
艾睿:
This LDO AP1117E33G-13 linear regulator developed by Diodes Zetex keeps the power stable! Its typical dropout voltage at current is 1.3@1A V. This voltage regulation device&s;s single output can produce a current up to 1 A. By only needing an input voltage of 6.4 V with a maximum of 18 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. At a load regulation of 33mV and line regulation of 0.2% your circuit is capable of maintaining a constant voltage level at your output. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 1.4@1A V.
Allied Electronics:
Voltage Regulators; LDO; LDO BI 1.0A 1.3V 12V 5.0V 3.3V FIX
安富利:
LDO Regulator Pos 3.3V 1A 4-Pin3+Tab SOT-223 T/R
Chip1Stop:
LDO Regulator Pos 3.3V 1A 4-Pin3+Tab SOT-223 T/R
Verical:
LDO Regulator Pos 3.3V 1A 4-Pin3+Tab SOT-223 T/R
Newark:
# DIODES INC. AP1117E33G-13 Fixed LDO Voltage Regulator, 4.8V to 18V, 1.3V Dropout, 3.3Vout, 1Aout, SOT-223-3
儒卓力:
**LDO VREG 3.3V 1A SOT223 **
DeviceMart:
IC REG LDO 3.3V 1A SOT-223
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 1A SOT-223-3
额定功率 15 W
输出接口数 1
输入电压DC 18.0V max
输出电压 3.3 V
输出电流 1 A
针脚数 3
耗散功率 15 W
静态电流 10 mA
跌落电压 1.3 V
输入电压Max 18 V
输入电压Min 4.8 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min 0 ℃
输入电压 6.4V ~ 18V
安装方式 Surface Mount
引脚数 3

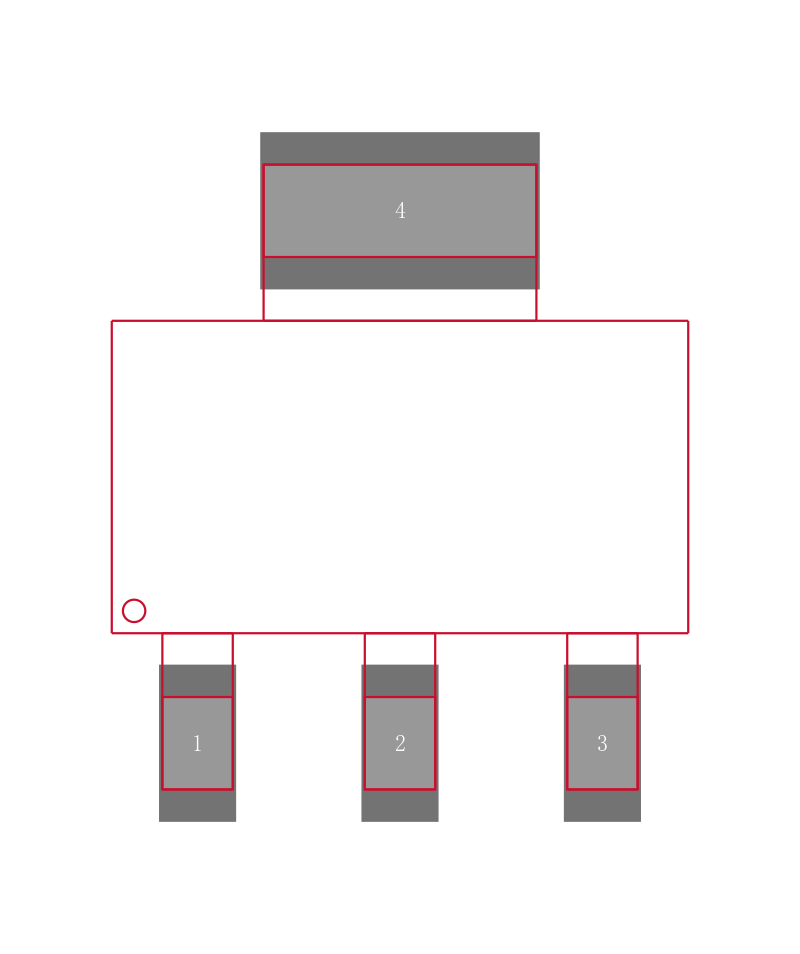

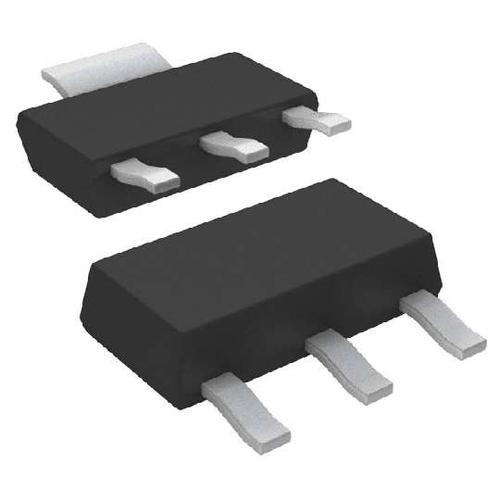

封装 SOT-223-3
长度 6.7 mm
宽度 3.7 mm
高度 1.7 mm
封装 SOT-223-3
工作温度 -20℃ ~ 125℃
产品生命周期 Obsolete
包装方式 Tape & Reel TR
制造应用 通信与网络, Power Management, Communications & Networking, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AP1117E33G-13 Diodes 美台 | 当前型号 | 当前型号 |
AP1117IE33G-13 美台 | 完全替代 | AP1117E33G-13和AP1117IE33G-13的区别 |
ZLDO1117G33TA 美台 | 类似代替 | AP1117E33G-13和ZLDO1117G33TA的区别 |
AZ1117H-3.3TRE1 美台 | 类似代替 | AP1117E33G-13和AZ1117H-3.3TRE1的区别 |
