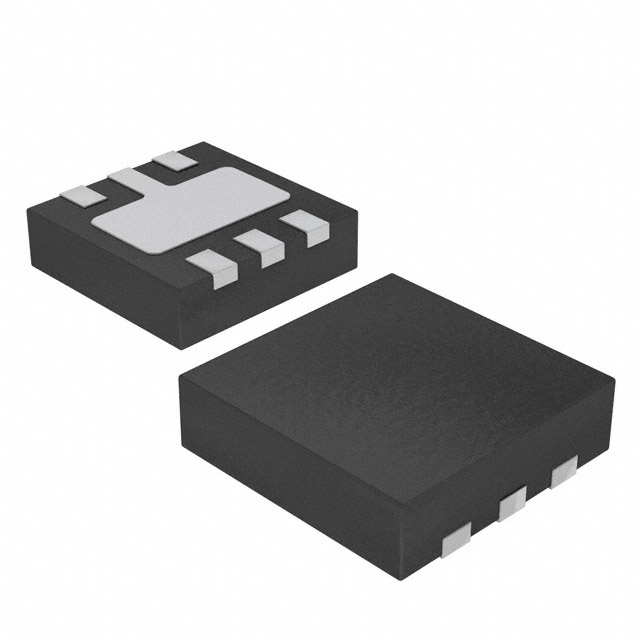

USB Power SW Hi Side Single 2.7V to 5.5V 3.7A 6Pin UDFN T/R
Use this high side switch USB powered Ethernet switch from Zetex to control which one of your devices draws power. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.7 V that does not exceed 5.5 V. Its current limit is 3.7 A. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This USB powered network switch has a minimum operating temperature of -40 °C and a maximum of 85 °C.
输出接口数 1
输出电流 2.5 A
上升时间 600 µs
输入电压Max 5.5 V
输入电压Min 2.7 V
输出电流Max 2.5 A
输入数 1
下降时间 50 µs
工作温度Max 85 ℃
工作温度Min 40 ℃
电源电压Max 5.5 V
电源电压Min 2.7 V
输入电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 6
封装 uDFN-6
封装 uDFN-6
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
