电源开关 IC - 配电 2.1A Precision ADJ 5.5V 2.1A 210kOhm
Use this high side switch USB powered Ethernet switch from Zetex to control which one of your devices draws power. This will operate at a minimum voltage of 2.7 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. Its current limit is 1.251 A. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This USB powered network switch has a minimum operating temperature of -40 °C and a maximum of 85 °C.
输出接口数 1
耗散功率 625 mW
上升时间 1100 µs
输入电压Max 5.5 V
输入电压Min 2.7 V
输出电流Max 2.1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 625 mW
电源电压Max 5.5 V
电源电压Min 2.7 V
输入电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 6

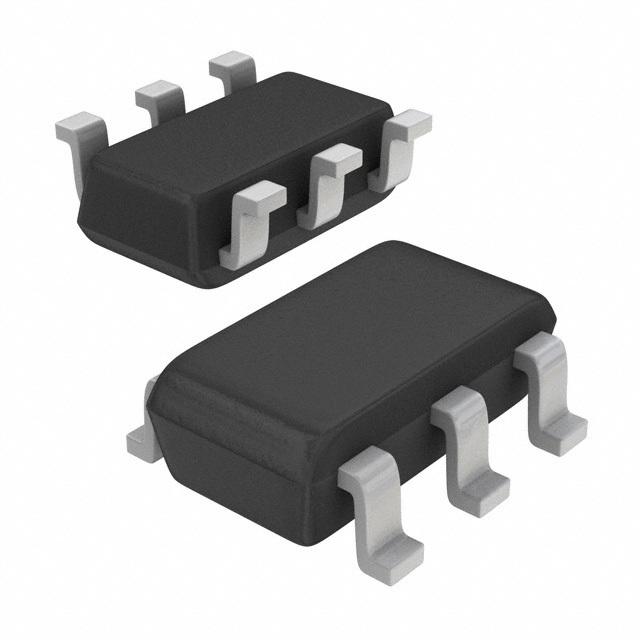

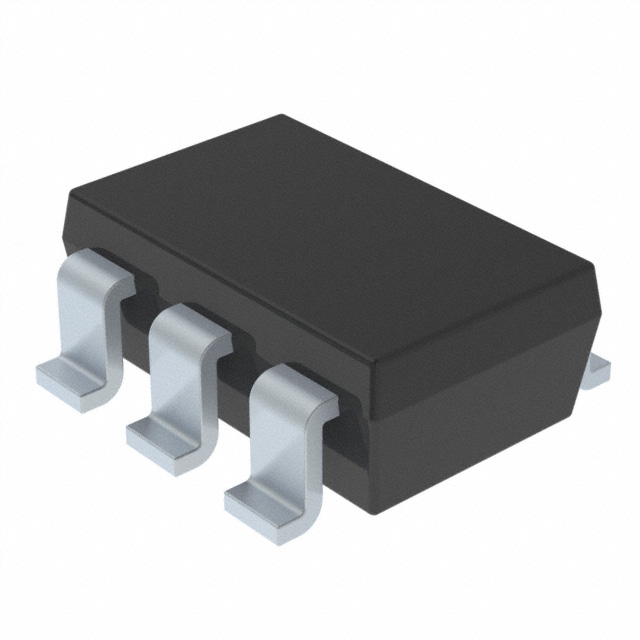

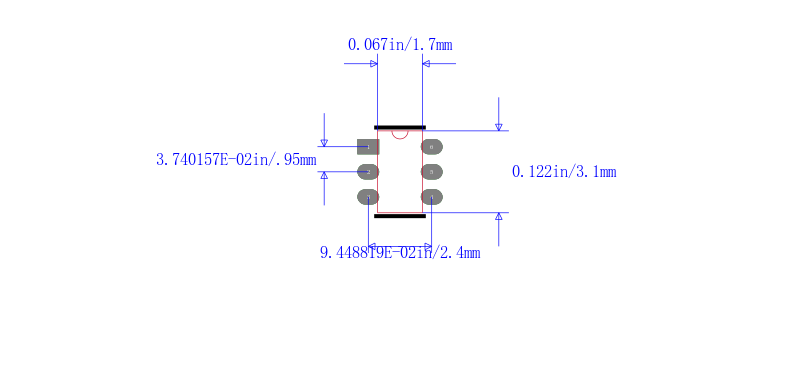

封装 SOT-23-6
封装 SOT-23-6
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
