DIODES INC. AP431ASAG-7 电压基准, 精密, 分流 - 可调, AP431A系列, 2.495V至36V, SOT-23-3
Even in the event of large power supply variations, this voltage reference power management device from Zetex can produce and maintain a precise DC voltage. It has an initial accuracy of 0.5%. With an output that has a voltage of 2.495 to 36 V, this is power management at its best. Use this part at voltages lower than 36 V. This voltage reference circuit supports shunt topology. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This voltage reference circuit has an operating temperature range of -20 °C to 85 °C. It runs with a maximum temperature coefficient of 30ppm/°C.
容差 ±0.5 %
输出电压 2.495 V
输出电流 200 mA
供电电流 10.0 mA
通道数 1
针脚数 3
输入电流 10 mA
输入电压Max 36 V
输出电压Max 36 V
输出电压Min 2.495 V
输出电流Max 200 mA
工作温度Max 85 ℃
工作温度Min -20 ℃
精度 0.5 %
输入电压 36 V
安装方式 Surface Mount
引脚数 3

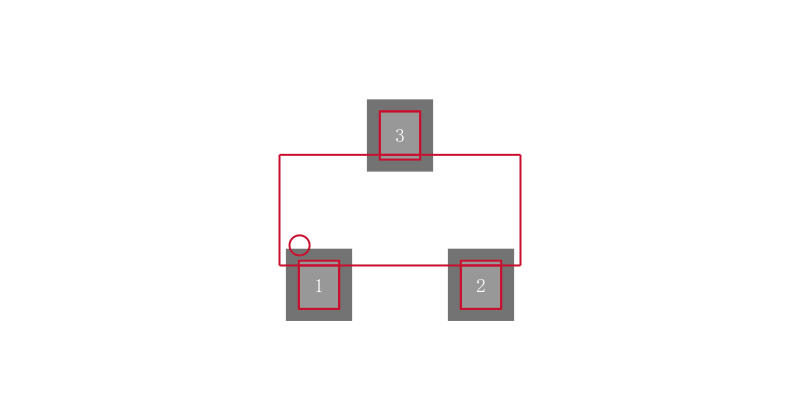

封装 SOT-23-3
长度 3 mm
宽度 1.4 mm
高度 0.98 mm
封装 SOT-23-3
重量 0.0001279130568 kg
工作温度 -20℃ ~ 85℃ TA
温度系数 ±30 ppm/℃
产品生命周期 Not Recommended for New Design
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
AP431ASAG-7 Diodes 美台 | 当前型号 | 当前型号 |
AP431AWG-7 美台 | 类似代替 | AP431ASAG-7和AP431AWG-7的区别 |
AP431AWL-7 美台 | 类似代替 | AP431ASAG-7和AP431AWL-7的区别 |
TL431BIDBZRG4 德州仪器 | 功能相似 | AP431ASAG-7和TL431BIDBZRG4的区别 |
