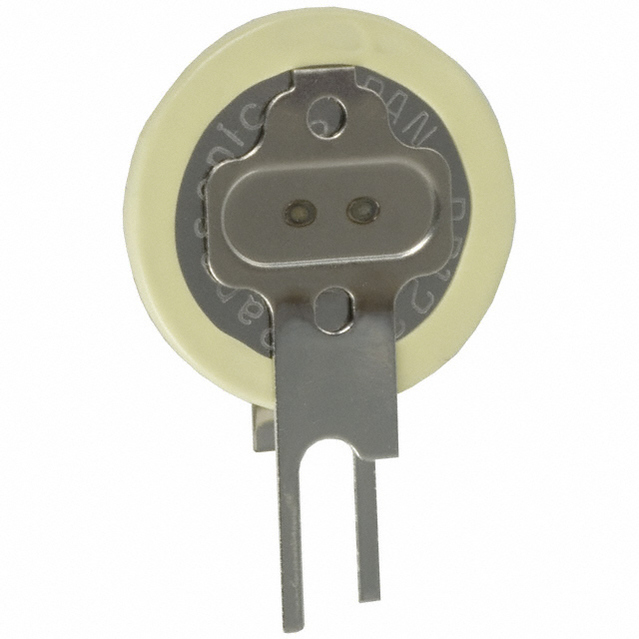

PANASONIC ELECTRONIC COMPONENTS BR-1225/VCN Battery, Lithium Poly Carbon Monofluoride, 48 mAh, 3V, 1225, PCB Pins, 12.5mm
The is a 1225 3V/48mAh Non-rechargeable Battery, lithium polycarbon monofluoride technology with PCB-pin terminals, vertical PCB mount, high voltage of 3V - twice that of conventional dry batteries, extremely small self-discharge for long service and shelf life, compact and lightweight, extremely high energy density, very safe poly-carbonmonofluoride lithium, extremely strong load pulse characteristics.
- .
- 0.03mA Continuous standard load
- .
- -30 to 80°C Operating temperature range
输出电压 3 V
工作温度Max 80 ℃
工作温度Min -30 ℃
引脚数 2
高度 2.5 mm
重量 0.8 g
工作温度 -30℃ ~ 80℃
产品生命周期 Unknown
包装方式 Bulk
制造应用 Power Management, Portable Devices, Clock & Timing, Consumer Electronics, Test & Measurement
RoHS标准 Non-Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
