Description:

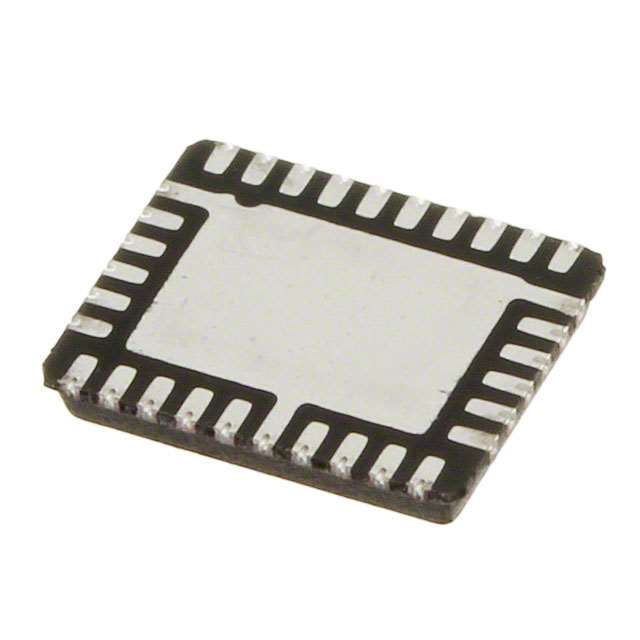

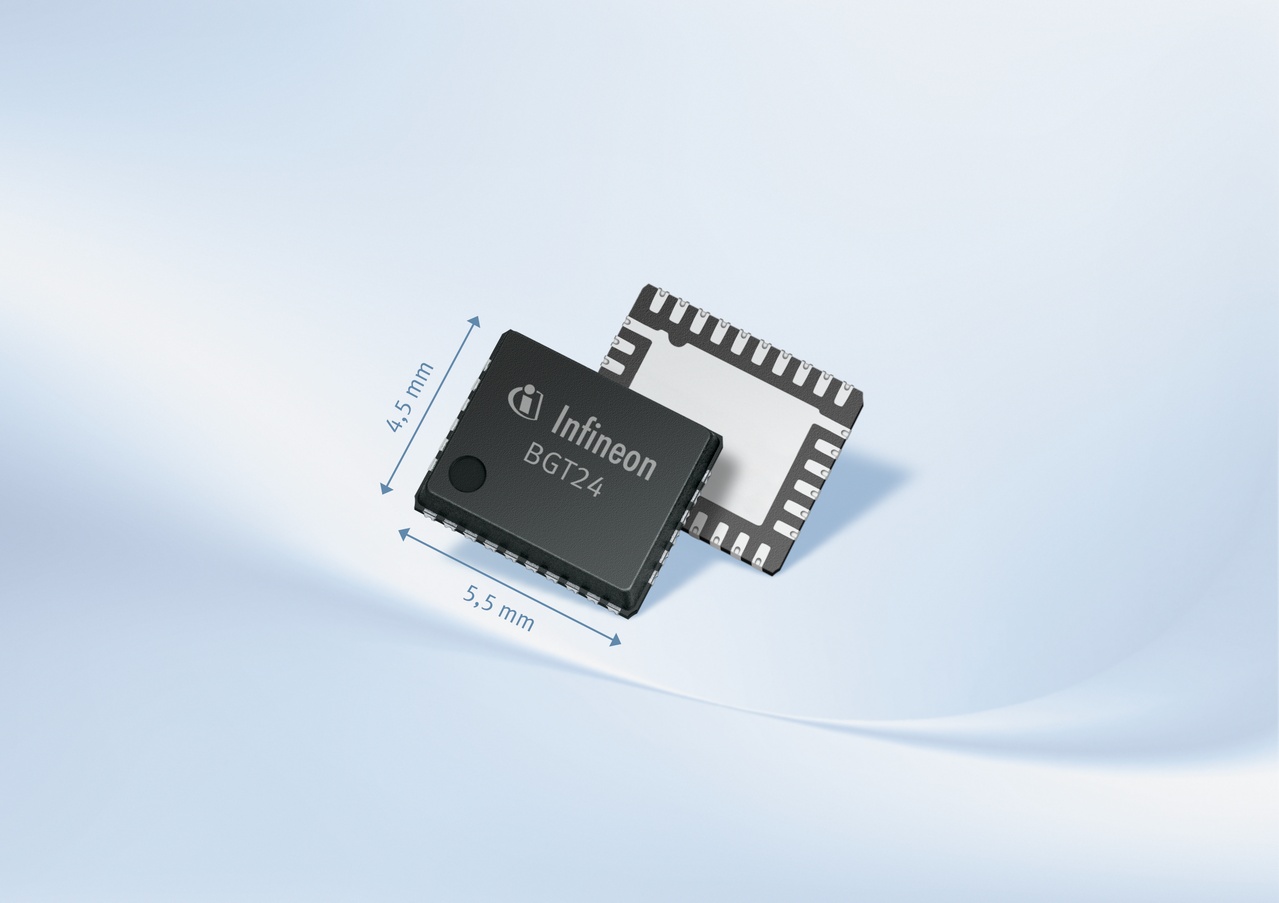

The BGT24MTR12 is a silicon germanium MMIC for signal generation and reception, operating from 24.00 to 26.00GHz. It is based on a 24GHz fundamental voltage controlled oscillator. A switchable frequency prescaler is included with output frequencies of 1.5GHz and 23kHz. The main RF output delivers up to 8 dBm signal power to feed an antenna. A RC polyphase filter PPF is used for LO quadrature phase generation of the homodyne quadrature downconversion mixer. Output power sensors as well as a temperature sensor are implemented for monitoring purposes. The device is controlled via SPI and is manufactured in a 0.18μm SiGe:C technology offering a cutoff frequency of 200GHz. The MMIC is packaged in a 32 pin leadless RoHs compliant VQFN package.
Summary of Features:
频率 24GHz ~ 24.25GHz
针脚数 32
耗散功率 500 mW
输出功率 11 dBm
工作温度Max 105 ℃
工作温度Min -40 ℃
耗散功率Max 500 mW
电源电压Max 3.465 V
电源电压Min 3.135 V
安装方式 Surface Mount
引脚数 32

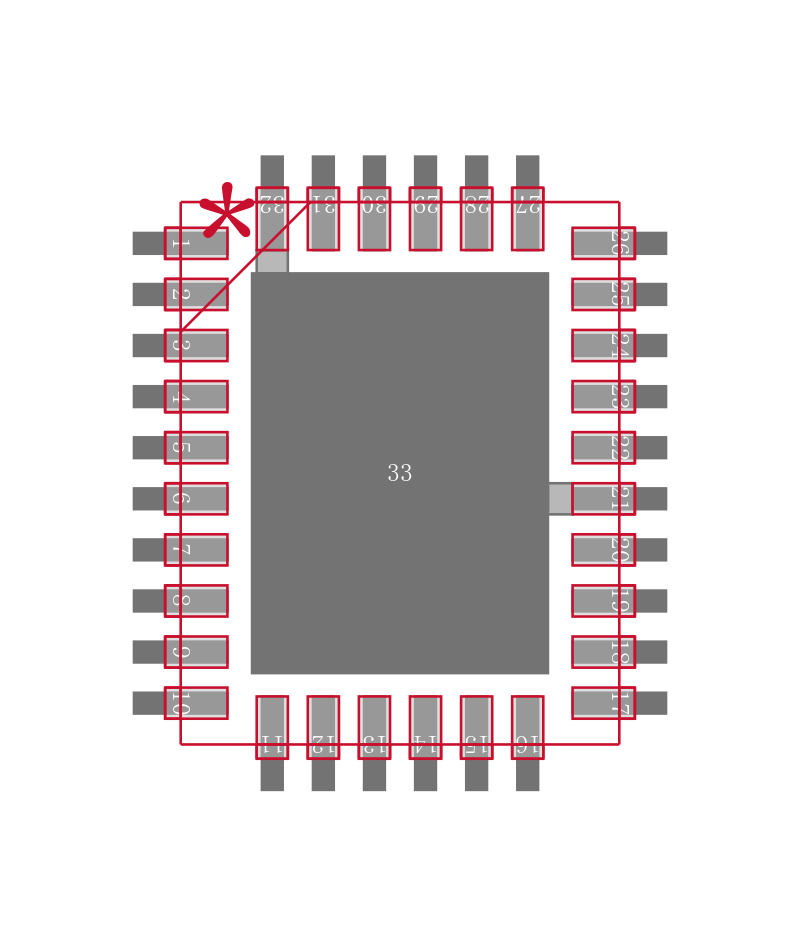

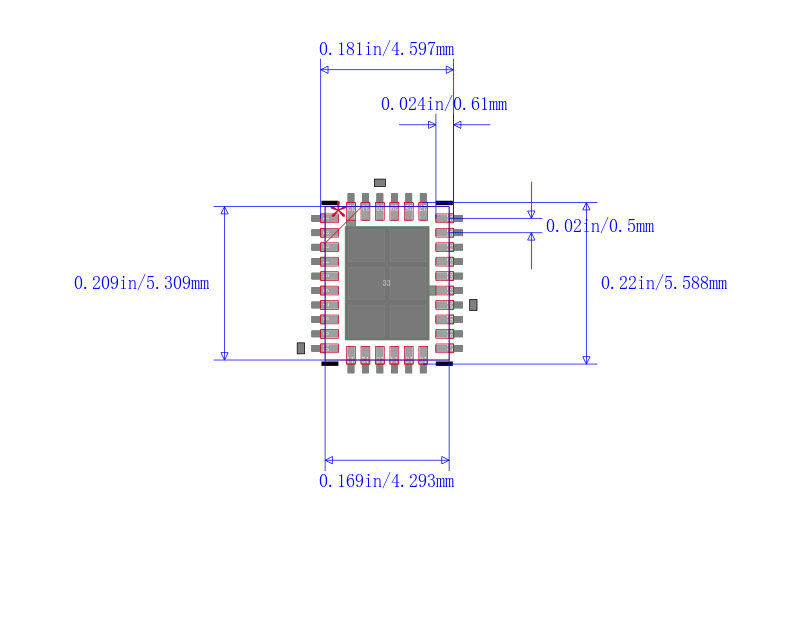

封装 VQFN-32
高度 0.85 mm
封装 VQFN-32
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Intelligent door openers, Tank level meters, Motion detectors, Street lighting projects, Intruder alarms, Police speed meters
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BGT24MTR12E6327XUMA1 Infineon 英飞凌 | 当前型号 | 当前型号 |
MAMX-011036-TR0100 M/A-Com | 功能相似 | BGT24MTR12E6327XUMA1和MAMX-011036-TR0100的区别 |
