BQ2057WTS

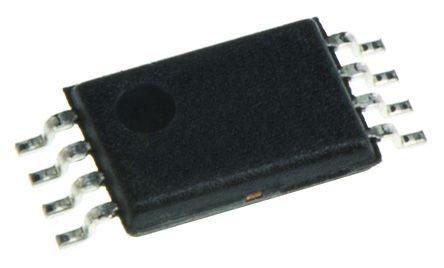

BQ2057WTS图片1
BQ2057WTS图片2
BQ2057WTS图片3
BQ2057WTS图片4
BQ2057WTS图片5
BQ2057WTS图片6
BQ2057WTS图片7
BQ2057WTS图片8
BQ2057WTS图片9
BQ2057WTS图片10
BQ2057WTS图片11
BQ2057WTS图片12
BQ2057WTS图片13
BQ2057WTS图片14
BQ2057WTS概述

IC,Texas InstrumentsIntegrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.### 电池管理,Texas Instruments

锂离子电池充电 IC,Texas Instruments

Integrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.

### 电池管理,Texas Instruments


得捷:
IC BATT CHG LI-ION 2CELL 8TSSOP


立创商城:
BQ2057WTS


德州仪器TI:
Low Dropout linear 2-cell Li-ion battery charge controller with AutoCompTM, 8.4V


欧时:
### 锂离子电池充电 IC,Texas InstrumentsIntegrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.### 电池管理,Texas Instruments


贸泽:
Battery Management Li-Ion LDO Linear Charge Management IC


艾睿:
Linear Charge Management Li-Ion/Li-Pol 2000mA 8.4V 8-Pin TSSOP Tube


安富利:
Linear Charge Management Li-Ion/Li-Pol 2000mA 8.4V 8-Pin TSSOP Tube


Chip1Stop:
Battery Charge Management Low Dropout Linear 2-cell Li-Ion Charge Controller with AutoCompTM, 8.4V Linear Charge Management Li-Ion/Li-Pol 2000mA 8.4V 8-Pin TSSOP Tube


Verical:
Linear Charge Management Li-Ion/Li-Pol 2000mA 8.4V 8-Pin TSSOP Tube


Newark:
# TEXAS INSTRUMENTS  BQ2057WTS  Battery Charger for 2 Cells of Li-Ion, Li-Pol battery, 15V input, 8.4V/2 A charge, TSSOP-8


Win Source:
IC LITH-ION LDO CHRG MGMT 8TSSOP


BQ2057WTS中文资料参数规格
技术参数

电源电压DC 4.50 V, 15.0 V max

输入电压DC 15.0 V

输出电压 8.4 V

输出电流 2 A

通道数 1

耗散功率 300 mW

工作温度Max 70 ℃

工作温度Min -20 ℃

耗散功率Max 300 mW

电源电压 4.5 V

输入电压 15 V

封装参数

安装方式 Surface Mount

引脚数 8

封装 TSSOP-8

外形尺寸

长度 3 mm

宽度 4.4 mm

高度 1.15 mm

封装 TSSOP-8

物理参数

工作温度 -20℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

数据手册

BQ2057WTS引脚图与封装图
BQ2057WTS引脚图
BQ2057WTS封装图
BQ2057WTS封装焊盘图
在线购买BQ2057WTS
型号: BQ2057WTS
制造商: TI 德州仪器
描述:IC,Texas Instruments Integrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps. ### 电池管理,Texas Instruments
替代型号BQ2057WTS
型号/品牌 代替类型 替代型号对比

BQ2057WTS

TI 德州仪器

当前型号

当前型号

BQ2057WTSTR

德州仪器

完全替代

BQ2057WTS和BQ2057WTSTR的区别

BQ2057WTSG4

德州仪器

完全替代

BQ2057WTS和BQ2057WTSG4的区别

BQ2057WTSTRG4

德州仪器

完全替代

BQ2057WTS和BQ2057WTSTRG4的区别
