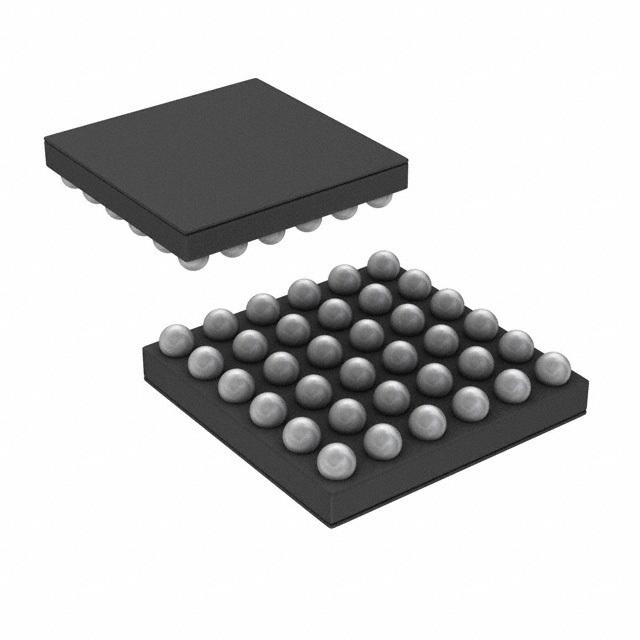

1S, 3A, 30V, Single-Input Switchmode Li-Ion Battery Charger with Power Path and USB-OTG 36-DSBGA -40℃ to 85℃
The bq24260/bq24261/bq24261M/bq24262 is a highly integrated single-cell Li-Ion battery charger and system power path management device that supports operation from either a USB port or wall adapter supply. The power-path feature allows the bq24260/1/1M/2 to power the system from a high efficiency DC-DC converter while simultaneously and independently charging the battery. The power path also permits the battery to supplement the system current requirements when the adapter cannot. Many features are programmable using the I2C interface. To support USB OTG applications, the bq24260/1/1M/2 is configurable to boost the battery voltage to 5 V and supply up to 1 A at the input. The battery is charged with three phases: precharge, constant current, and constant voltage. Thermal regulation prevents the die temperature from exceeding 125°C. Additionally, a JEITA-compatible battery pack thermistor monitoring input TS is included to prevent the battery from charging outside of its safe temperature range.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BQ24261MYFFR TI 德州仪器 | 当前型号 | 当前型号 |
BQ24261YFFR 德州仪器 | 完全替代 | BQ24261MYFFR和BQ24261YFFR的区别 |
BQ24261MYFFT 德州仪器 | 类似代替 | BQ24261MYFFR和BQ24261MYFFT的区别 |
