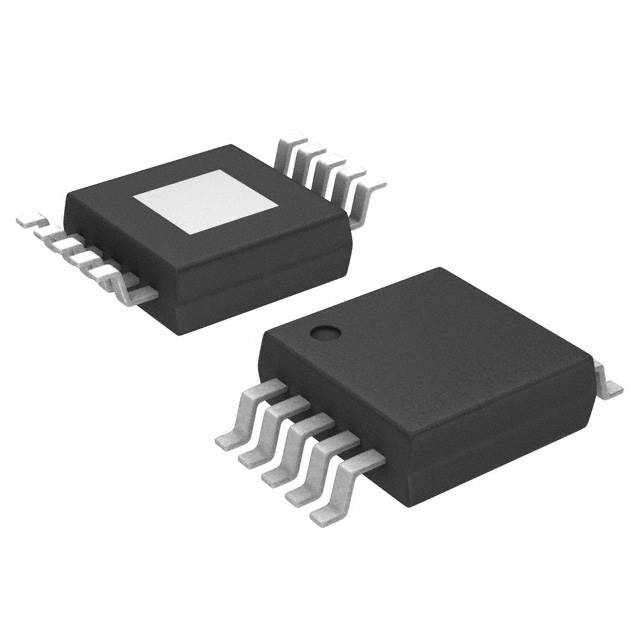

TEXAS INSTRUMENTS BQ24090DGQR 电池充电器, 用于1节锂离子, 锂聚合物电池, 6.45V输入, 4.2V / 1A充电, MSOP-10 新
This battery charger charge controller from Texas Instruments performs various functions such as battery charging, detecting when external power is present, and determining safe operating temperatures. With an output that has a voltage of 4.2 V, this is power management at its best. Its output produces a current of 1000 mA. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device has a minimum operating supply voltage of 3.5 V and a maximum of 12 V. This device runs on Li-Ion|Li-Pol. This battery gauge has a minimum operating temperature of 0 °C and a maximum of 125 °C.
输入电压DC 6.45 V
输出电压 4.2 V
输出电流 1000 mA
针脚数 10
耗散功率 1920 mW
工作温度Max 150 ℃
工作温度Min -40 ℃
耗散功率Max 1920 mW
电源电压 4.5 V
电源电压Max 6.45 V
输入电压 6.45 V
安装方式 Surface Mount
引脚数 10
封装 PowerPad-MSOP-10
封装 PowerPad-MSOP-10
工作温度 0℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BQ24090DGQR TI 德州仪器 | 当前型号 | 当前型号 |
