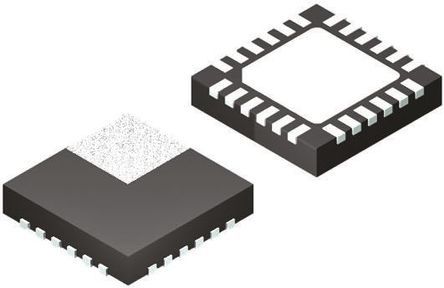

TEXAS INSTRUMENTS BQ25895RTWT 芯片, 电池充电器, 锂离子/聚合物, 5A, WQFN-24
锂离子电池充电 IC,Texas Instruments
Integrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.
得捷:
IC BATT CHG LI-ION 1CELL 24WQFN
立创商城:
BQ25895RTWT
德州仪器TI:
I2C 1cell 5A buck battery charger with high input voltage and 3.1-A boost with HVDCP enabled
欧时:
锂离子电池充电 IC,Texas InstrumentsIntegrated battery charging ICs from Texas Instruments intended for use with Lithium-Ion & Lithium-Polymer cells. These devices provide a complete charging and monitoring solution and include internal power devices capable of supplying charging currents of up to several amps.### 电池管理,Texas Instruments
e络盟:
电池充电器, 用于1节锂离子, 锂聚合物电池, 14V输入, 4.6V / 5A充电, WQFN-24
艾睿:
Are you looking for a system to optimize your battery performance? Then this battery charger BQ25895RTWT charge controller from Texas Instruments is the solution you&s;ve been looking for! In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This battery gauge has an operating temperature range of -40 °C to 85 °C. This device runs on Li-Ion|Li-Pol. This device has a minimum operating supply voltage of 3.9 V and a maximum of 14 V.
安富利:
Battery Charger Li-Ion/Li-Pol 5000mA 3.8V to 4.6V 24-Pin WQFN T/R
Verical:
Switching Battery Charger Li-Ion/Li-Pol 5000mA 3.84V to 4.6V 24-Pin WQFN EP T/R
Newark:
Battery Charger for 1 Cell of Li-Ion, Li-Pol battery, 14V input, 5 A charge, WQFN-24
输入电压DC 14.0 V
输出电压 3.8V ~ 4.6V
输出电流 5000 mA
针脚数 24
输出电压Max 5.5 V
输出电压Min 4.5 V
输出电流Max 5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 14 V
输入电压 14 V
安装方式 Surface Mount
引脚数 24
封装 WQFN-24
长度 4.15 mm
宽度 4.15 mm
高度 0.75 mm
封装 WQFN-24
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 消费电子产品, 便携式器材, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BQ25895RTWT TI 德州仪器 | 当前型号 | 当前型号 |
BQ25895RTWR 德州仪器 | 类似代替 | BQ25895RTWT和BQ25895RTWR的区别 |
