NKK SWITCHES B13AP 拨动开关, SPDT, 0.1A, 28VAC
PC Mount, epoxy sealed terminals.* Smallest Locking Lever Toggle
* IP65 Rating for Threaded Bushing Versions
* Bracketed Models Are ESD Protected
得捷:
SWITCH TOGGLE SPDT 0.4VA 28V
立创商城:
B13AP
贸泽:
拨动开关 ON-OFF-ON .394 BAT STRT PC .4VA
e络盟:
开关, 拨动, SPDT, 0.1A, 28VAC
艾睿:
This process sealed B13AP toggle switch from NKK Switches acts like a light switch to turn on or off any part of your circuit. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPDT configuration. This toggle switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The B13AP toggle switch has a PC pin termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 8.8 mm long, 23.1 mm tall and 6.8 mm deep.
Allied Electronics:
Switch; Sealed; Anti-Static Toggle; SPDT; ON-OFF-ON; Str PC; No Cap; 0.4A; 28VAC/DC
Chip1Stop:
Switch Toggle ON OFF ON SPDT Bat Toggle PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount
Verical:
Switch Toggle ON OFF ON SPDT Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount
Newark:
# NKK SWITCHES B13AP Toggle Switch, Non Illuminated, SPDT, On-Off-On, Panel, 100 mA
Powell:
SUBMINIATURE TOGGLE/PC
触点电镀 Gold
额定电压DC 28 V
接触器类型 Standard
额定电压AC 28 V
额定电流 0.4 A
排数 1
方向 Vertical
触点类型 SPDT
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
接触电阻Max 50 mΩ
安装方式 Through Hole
封装 -

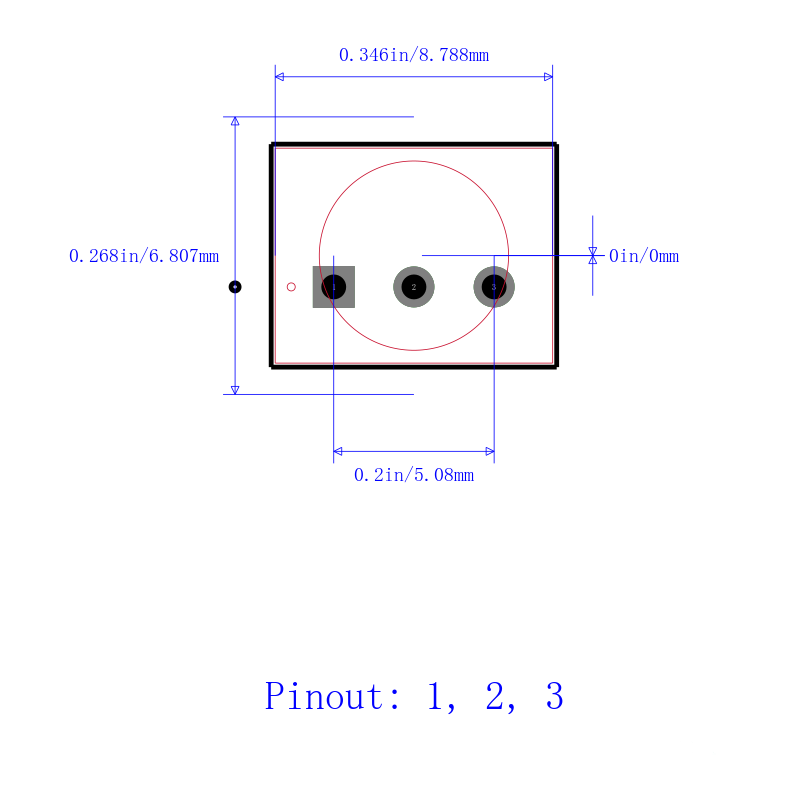

长度 8.8 mm
宽度 6.8 mm
高度 23.1 mm
封装 -
颜色 White
触点材质 Phosphor Bronze
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
