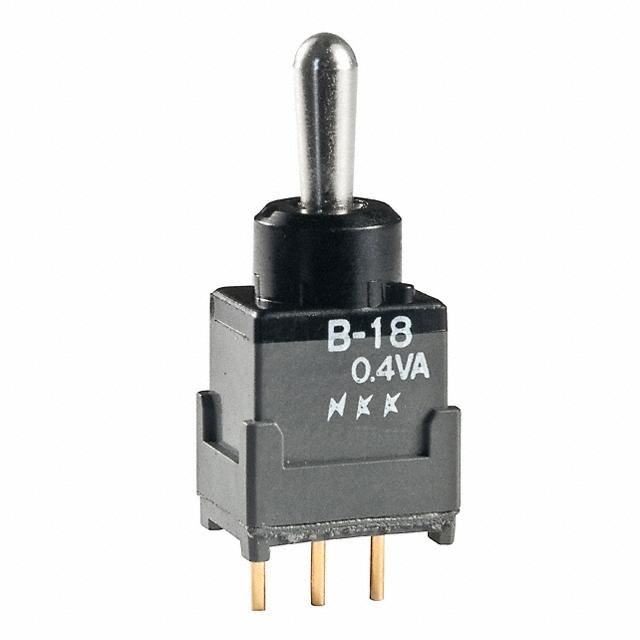

NKK SWITCHES B18JP 拨动开关, SPDT, 0.1A, 28VAC
PC Mount, epoxy sealed terminals.- .
- *Electrical Capacity:** 0.4 VA max. @ 28 VAC/VDC max. **Electrical Life:** 50,000 operations min. **Mechanical Life: **100,000 operations min. 50,000 operations min. for locking lever models.
* Smallest Locking Lever Toggle
* IP65 Rating for Threaded Bushing Versions
* Bracketed Models Are ESD Protected
得捷:
SWITCH TOGGLE SPDT 0.4VA 28V
e络盟:
拨动开关, SPDT, 0.1A, 28VAC
艾睿:
This process sealed B18JP toggle switch from NKK Switches acts like a light switch to turn on or off any part of your circuit. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPDT configuration. This toggle switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The B18JP toggle switch has a PC pin termination style. This product is 8.8 mm long, 19.4 mm tall and 6.8 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.
Allied Electronics:
SWITCH TOGGLE SPDT 0.4VA 28V
Chip1Stop:
Switch Toggle ON OFF ON SPDT Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount
Verical:
Switch Toggle ON OFF ON SPDT Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount
Newark:
# NKK SWITCHES B18JP Toggle Switch, Non Illuminated, SPDT, On-Off-On, Panel, 100 mA
Powell:
SUBMINIATURE TOGGLE/PC
