BU4227F-TR

ROHM  BU4227F-TR  电压探测器, 自由延迟时间设定, 漏极开路, 2.7 V复位, 0.7V-7V输入, SOP-4

●General Description

ROHM’s BU42xx and BU43xx series are CMOS Voltage Detector  ICs  with  adjustable  output  delay.  It  is  a

high-accuracy, low current consumption Voltage Detector IC  series  with  a  built-in  delay  circuit.  The  lineup  was established  with  two  output  types  Nch  open  drain  and CMOS output and detection voltages range from 0.9V to 4.8V  in  increments  of  0.1V,  so  that  the  series  may  be selected according to application.

●Features

 Delay Time Controlled by external Capacitor

 Two output types Nch open drain and CMOS output

 Ultra-low current consumption

 Wide operating temperature range

 Very small and low height package

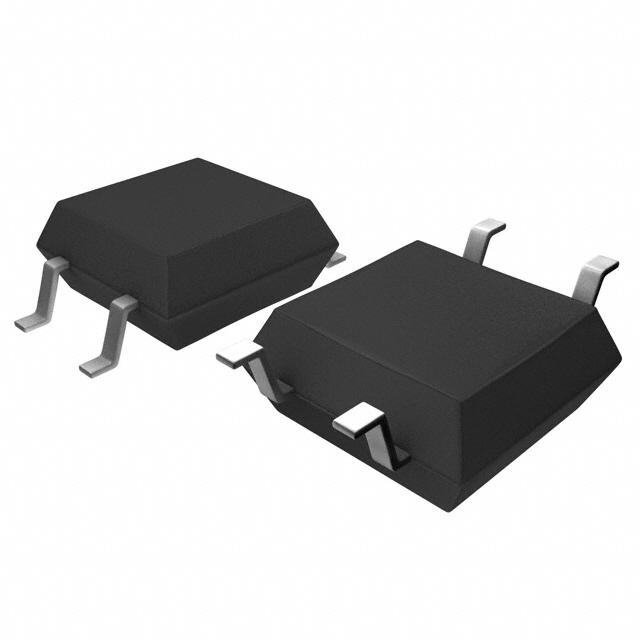

 Package  SSOP5  and  SOP4  is  similar  to  SOT-23-5 and SC-82 respectively JEDEC

●Applications

Circuits using microcontrollers or logic circuits that require a reset.
