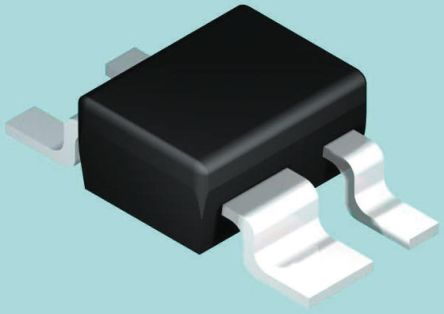

INFINEON BAS3007ARPPE6327HTSA1 二极管 桥式整流, BAx系列, 单相, 30 V, 900 mA, SOT-143, 700 mV, 4 引脚
肖特基势垒,
欧时:
Infineon 二极管 BAS3007ARPPE6327HTSA1 肖特基, Io=900mA, Vrev=30V, 4引脚 SOT-143封装
得捷:
BRIDGE RECT 1P 30V 900A SOT143-4
e络盟:
二极管 桥式整流, BAx系列, 单相, 30 V, 900 mA, SOT-143, 700 mV, 4 引脚
艾睿:
If you want to convert an alternating current input into a direct current, then this BAS3007ARPPE6327HTSA1 full bridge rectifier from Infineon Technologies is perfect for you! In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It is made in a single configuration. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C.
安富利:
Diode Rectifier Bridge Single 30V 0.9A 4-Pin SOT-143 T/R
Chip1Stop:
Diode Rectifier Bridge Single 30V 0.9A Automotive 4-Pin3+Tab SOT-143 T/R
Verical:
Diode Rectifier Bridge Single 30V 0.9A Automotive 4-Pin3+Tab SOT-143 T/R
Newark:
# INFINEON BAS3007ARPPE6327HTSA1 Bridge Rectifier Diode, BAx Series, Single, 30 V, 900 mA, 700 mV, 4 Pins
Win Source:
BRIDGE RECT 1P 30V 900A SOT143-4 / Bridge Rectifier Single Phase Standard 30 V Surface Mount PG-SOT-143-3D
针脚数 4
正向电压 0.6 V
最大反向电压(Vrrm) 30V
正向电流 900 mA
最大正向浪涌电流(Ifsm) 5 A
正向电压Max 700 mV
正向电流Max 900 mA
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 4
封装 TO-253-4
长度 2.9 mm
宽度 1.3 mm
高度 0.9 mm
封装 TO-253-4
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 电源管理, Energy saving Lamps, Mobile Battery charger Mobile-Phones, Digital-Cameras, PDAs, Power Management, Rectifier for LED illumination
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
