BAP142LX,315概述
Diode PIN Attenuator/Switch 50V 2Pin SOD T/R
The best way to create a secure user interface is by using an attenuator and switch PIN diode from Semiconductors in your design. Its maximum power dissipation is 130 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This PIN diode attenuator has an operating temperature range of -65 °C to 150 °C. It is made in a single configuration.
BAP142LX,315中文资料参数规格
技术参数
正向电压 1.1 V
耗散功率 130 mW
电阻 0.7 Ω
正向电流 100 mA
正向电压Max 1.1 V
正向电流Max 100 mA
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 130 mW
额定电压 50 V
封装参数
安装方式 Surface Mount
引脚数 2

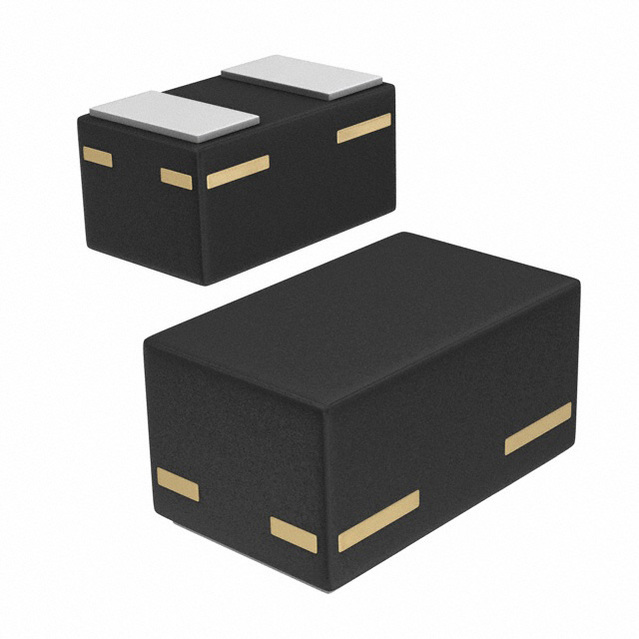

封装 SOD-882
外形尺寸
长度 1.05 mm
宽度 0.65 mm
高度 0.4 mm
封装 SOD-882
物理参数
工作温度 -65℃ ~ 150℃ TJ
其他
产品生命周期 Active
包装方式 Tape & Reel TR
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
