Switch Toggle ON None ON SPDT Lighted Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount
拨动 SPDT 通孔
得捷:
SWITCH TOGGLE SPDT 0.4VA 28V
艾睿:

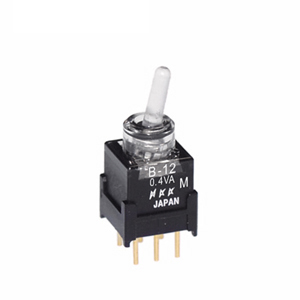

This B12JJPF toggle switch from NKK Switches is the best at minimizing lag between switches in your design. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPDT configuration. This toggle switch has an operating temperature range of -25 °C to 55 °C. The B12JJPF toggle switch has a PC pin termination style. This product is 8.8 mm long, 19.4 mm tall and 8.8 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.
Allied Electronics:
SUBMINIATURE TOGGLE/ILLUMINATED/PC
Chip1Stop:
Switch Toggle ON None ON SPDT Lighted Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount
Verical:
Switch Toggle ON None ON SPDT Lighted Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount
Powell:
SUBMINIATURE TOGGLE/ILLUMINATED/PC
触点电镀 Gold
额定电压DC 28 V
额定电压AC 28 V
绝缘电阻 500 MΩ
排数 1
触点类型 SPDT
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 55 ℃
工作温度Min -25 ℃
接触电阻Max 50 mΩ
安装方式 Through Hole
长度 8.8 mm
宽度 8.8 mm
高度 19.4 mm
颜色 Green
触点材质 Phosphor Bronze
工作温度 -25℃ ~ 55℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
