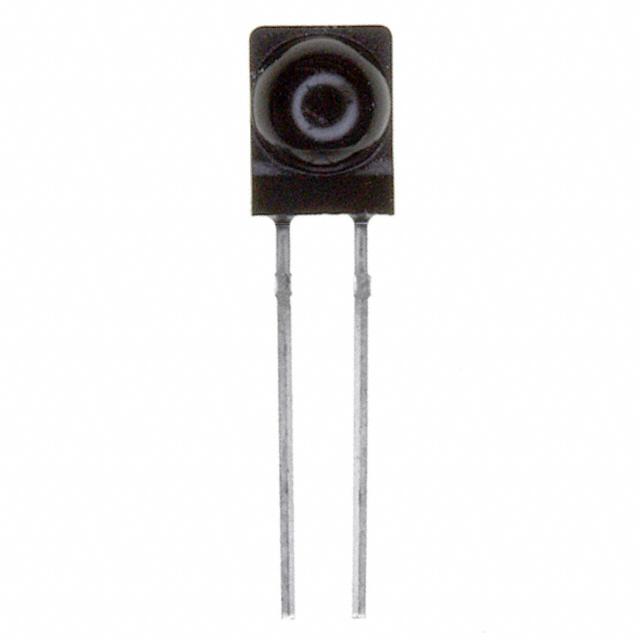

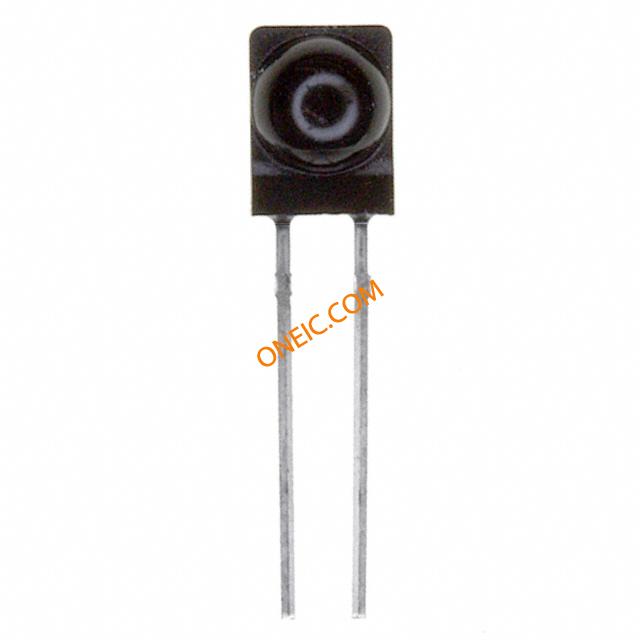

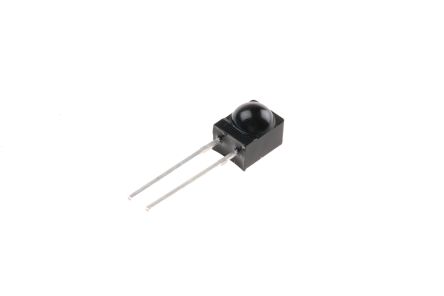

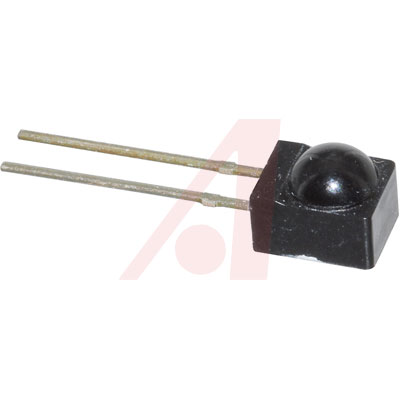

BPV22 and BPV23 Series PIN PhotodiodesThe BPV22 and BPV23 series, from Vishay Semiconductor, are a range on PIN photodiodes within a side looking package. They are in a through-hole package with a black plastic lens and daylight filter. Its dome lens offers an 80% improvement in sensitivity in comparison to a flat lens type. Suitable applications for the BPV22 and BPV23 PIN photodiodes include; IR radiation detectors, IR remote control and air data transmission systems. The BPV22 and BPV23 can be used in combination with the TSFF BPV22 or TSAL BPV23 series IR emitters. Features of the BPV22 and BPV23 PIN photodiodes: Through-hole mounting Side looking SL package High radiant sensitivity Black plastic package with daylight filter Dimensions: 4.5 x 5 x 6 mm Fast response times Angle of half intensity: 60° ### IR 光电二极管，Vishay Semiconductor
950nm - 120° 径向，侧视图
得捷:
PHOTODIODE 790 TO 1050 NM
欧时:
### BPV22 and BPV23 Series PIN PhotodiodesThe BPV22 and BPV23 series, from Vishay Semiconductor, are a range on PIN photodiodes within a side looking package. They are in a through-hole package with a black plastic lens and daylight filter. Its dome lens offers an 80% improvement in sensitivity in comparison to a flat lens type. Suitable applications for the BPV22 and BPV23 PIN photodiodes include; IR radiation detectors, IR remote control and air data transmission systems. The BPV22 and BPV23 can be used in combination with the TSFF BPV22 or TSAL BPV23 series IR emitters. Features of the BPV22 and BPV23 PIN photodiodes: Through-hole mounting Side looking SL package High radiant sensitivity Black plastic package with daylight filter Dimensions: 4.5 x 5 x 6 mm Fast response times Angle of half intensity: 60° ### IR 光电二极管，Vishay Semiconductor
艾睿:
Photodiode PIN Chip 950nm 0.6A/W Sensitivity 2-Pin Side View
富昌:
950 nm 60 V 120° 视角 径向 通孔 硅 PIN 光电二极管
Verical:
Photodiode PIN Chip 950nm 0.6A/W Sensitivity 2-Pin Side View
Newark:
# VISHAY BPV23F Photodiode, 60 °, 2 nA, 950 nm, Radial Leaded-2
AMEYA360:
Vishay BPV23F 60 ° 红外 硅 光电二极管, 通孔 侧面封装
电容 48.0 pF
击穿电压 60 V
针脚数 2
正向电压 1.30 V
波长 950 nm
视角 120°
峰值波长 950 nm
耗散功率 215 mW
上升时间 70 ns
正向电流 50 mA
正向电压Max 1.3 V
下降时间 70 ns
下降时间Max 70 ns
上升时间Max 70 ns
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 215 mW
安装方式 Through Hole
引脚数 2
封装 TO-92

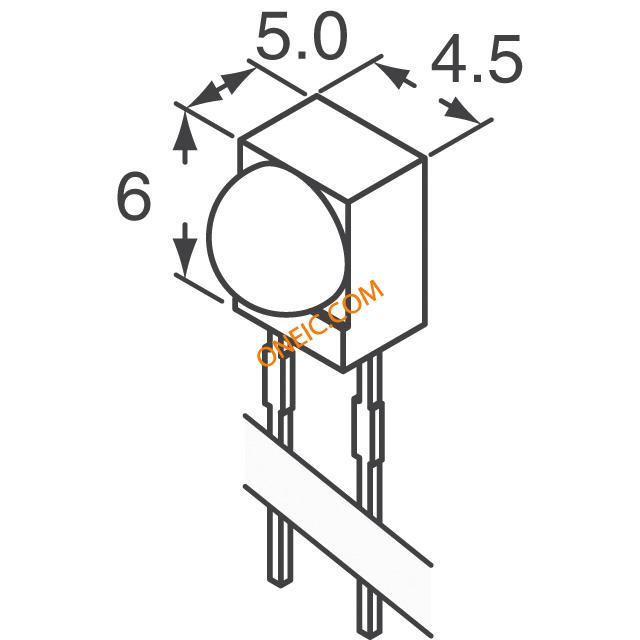

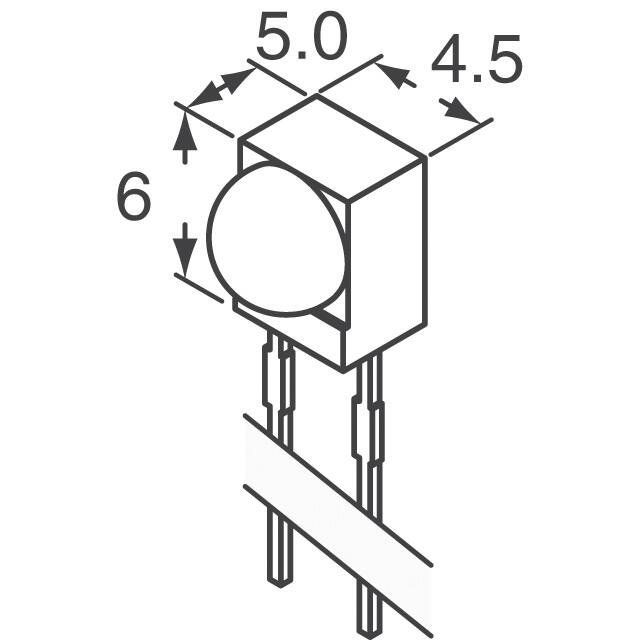

长度 4.5 mm
宽度 5 mm
高度 6 mm
封装 TO-92
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
