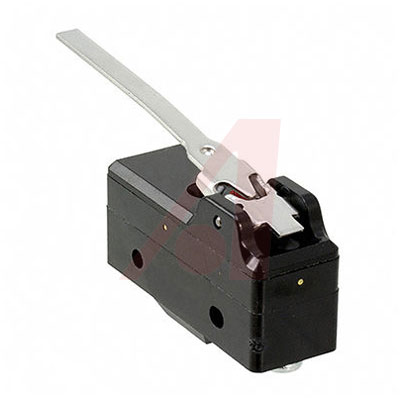

BA-2RVT

HONEYWELL  BA-2RVT  微型开关, 摁入式

**BA Series Micro Switch**

The BA series are carefully manufactured and thoroughly inspected. They are industry known for their compactness, light weight, accurate repeatability and long life.

e络盟:
微型开关, 摁入式

艾睿:
If you&s;re looking for rapid switching to close your circuit use this BA-2RVT snap-action switch from Honeywell. This device has a maximum current rating of 20 A @ 480VAC. It has a SPDT configuration. This snap action switch has a minimum operating temperature of -55 °C and a maximum of 85 °C. The BA-2RVT snap action switch has a screw termination style. This product is 76.28 mm long, 44.07 mm tall and 17.45 mm deep. The maximum AC voltage rating is 480 VAC and the maximum DC voltage rating is 250 VDC.

Allied Electronics:
BA SERIES STANDARD BASIC SWITCH, SINGLE

Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Lever Screw 20A 480VAC 250VDC 1491.4VA 0.7N Screw Mount

Verical:
Switch Snap Action N.O./N.C. SPDT Lever 20A 480VAC 250VDC 1491.4VA 0.7N Screw Mount Screw Automotive

Newark:
# HONEYWELL  BA-2RVT  Microswitch, BA Series, SPDT, Screw, 20 A, 480 VAC, 250 VDC

MASTER:
MICRO SWITCH™ Premium Large Basic Switches: BA Series, Single Pole Double Throw SPDT, 20 A 125/250/480 Vac, ENEC 20 A 250 Vac, 63,5 mm [2.50 in] Straight Lever Actuator, Binding Head Combination Screw Termination with Integral Lock Washers, Mounting Hol

Electro Sonic:
MICRO SWITCH™ Premium Large Basic Switches: BA Series, Single Pole Double Throw SPDT, 20 A 125/250/480 Vac, ENEC 20 A ...

Win Source:
SWITCH SNAP ACTION SPDT 20A 125V / Switch SPDT Chassis Mount
