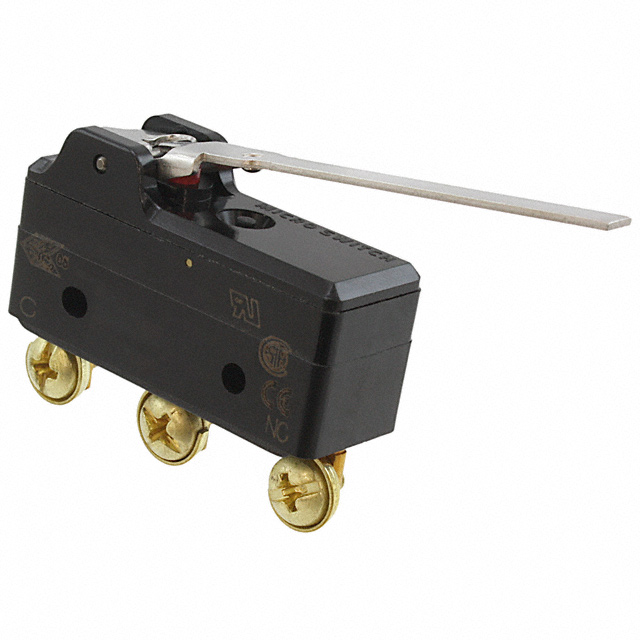

BA-2RV-P4

HONEYWELL  BA-2RV-P4  微动开关, 延长杆, SPDT, 15A, 250V

**BA Series Micro Switch**

The BA series are carefully manufactured and thoroughly inspected. They are industry known for their compactness, light weight, accurate repeatability and long life.

贸泽:
Basic / Snap Action Switches Series Standard 250VAC STR LVR ACTR

e络盟:
微动开关, 延长杆, SPDT, 15A, 250V

艾睿:
Look no further for a switch to quickly open or close your circuit and use the BA-2RV-P4 snap-action switch from Honeywell. It has a SPDT configuration. This device has a maximum current rating of 20 A @ 480VAC. This snap action switch has an operating temperature range of -55 °C to 85 °C. The BA-2RV-P4 snap action switch has a screw termination style. This product is 76.78 mm long, 52.45 mm tall and 17.45 mm deep. The maximum AC voltage rating is 480 VAC and the maximum DC voltage rating is 250 VDC.

Allied Electronics:
BA SERIES STANDARD BASIC SWITCH, SINGLE

Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Lever Screw 20A 480VAC 250VDC 1491.4VA 0.7N Screw Mount

Verical:
Switch Snap Action N.O./N.C. SPDT Lever 20A 480VAC 250VDC 1491.4VA 0.7N Screw Mount Screw Automotive

Newark:
# HONEYWELL  BA-2RV-P4  Microswitch, SPDT, Screw, 20 A, 250 VAC

MASTER:
MICRO SWITCH™ Premium Large Basic Switches: BA Series, Single Pole Double Throw SPDT, 20 A 125/250/480 Vac, ENEC 20 A 250 Vac, 63,5 mm [2.50 in] Straight Lever Actuator, Integral Left Side Facing 8-32 UNC Binding Head Combination Termination with Cup Wa

Electro Sonic:
MICRO SWITCH™ Premium Large Basic Switches: BA Series, Single Pole Double Throw SPDT, 20 A 125/250/480 Vac, ENEC 20 A ...
