BZ-2RW80

MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15A 125/250VAC, ENEC 16A 250VAC, 11,9mm [0.47in] Threaded Bushing with Roller Plunger, Integral Left Side Facing 8-32 UNC Binding Head Combination Screw Termination with Cup Washers, Mounting Holes will Accept Pins or Screws, Bushing Hardware Furnished Unassembled, UL, CE, CSA, ENEC

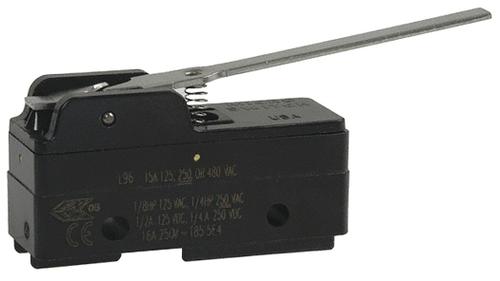

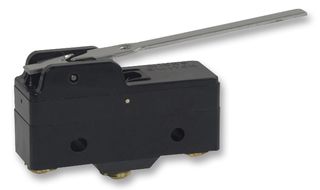

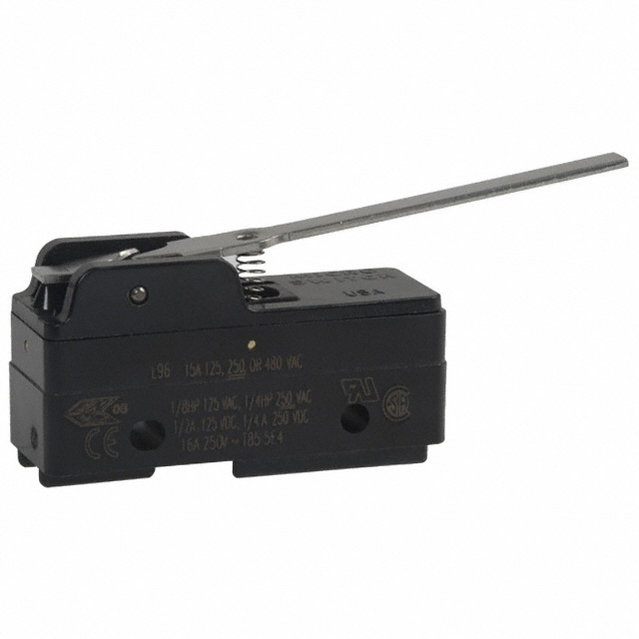

The is a single-pole double-throw SPDT Basic Switch with a straight lever actuator and silver contacts. This MICRO SWITCH™ BZ series standard premium large plastic basic switch comes with a general purpose phenolic housing and supports solder termination. It features elongated mounting hole for easier, more accurate mounting and accepted world-wide standard "Large Basic" switch. It is used for simple or precision on/off application needs, as well as end of limit, presence/absence and manual operator interface functions.

.

Low operating force and differential travel

.

Long mechanical life up to 20000000 cycles at 95% survival

.

-55 to 85°C Operating temperature range
