Switch Snap Action N.O./N.C. SPDT High Overtravel Plunger Screw 16A 480VAC 250VDC 186.42VA 5.56N Panel Mount
Standard large basic precision snap acting switch with overtravel plunger.
艾睿:

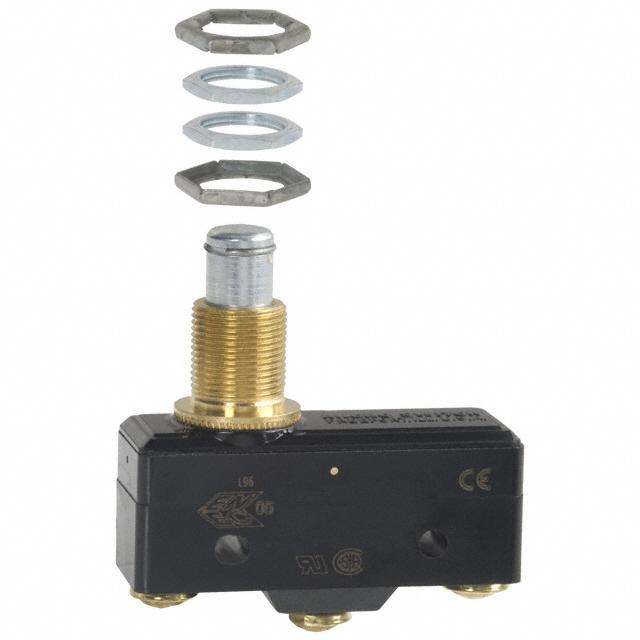

Only this BZ-3RQ1-A2 snap-action switch from Honeywell can open or close your circuit at the fastest speed. This device has a maximum current rating of 16 A @ 250VAC. It has a SPDT configuration. This snap action switch has a minimum operating temperature of -55 °C and a maximum of 85 °C. The BZ-3RQ1-A2 snap action switch has a screw termination style. This product is 49.28 mm long, 47.47 mm tall and 17.45 mm deep. The maximum AC voltage rating is 480 VAC and the maximum DC voltage rating is 250 VDC.
Allied Electronics:
Basic Switch, SPDT, 15 Amps, 250 VAC, Overtravel Plunger
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT High Overtravel Plunger Screw 16A 480VAC 250VDC 186.42VA 5.56N Panel Mount
Verical:
Switch Snap Action N.O./N.C. SPDT High Overtravel Plunger 16A 480VAC 250VDC 186.42VA 5.56N Panel Mount Screw Automotive
MASTER:
MICRO SWITCH™ Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A at 250 Vac, Overtravel Plunger Actuator, 3,89 N - 5,56 N [14 - 20 oz] Operating Force, Silver Contacts, Screw Termination
Electro Sonic:
MICRO SWITCH™ Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A at 250 Vac, Overtravel Plunger Actuator, 3,89 ...
