BB15AP-HA

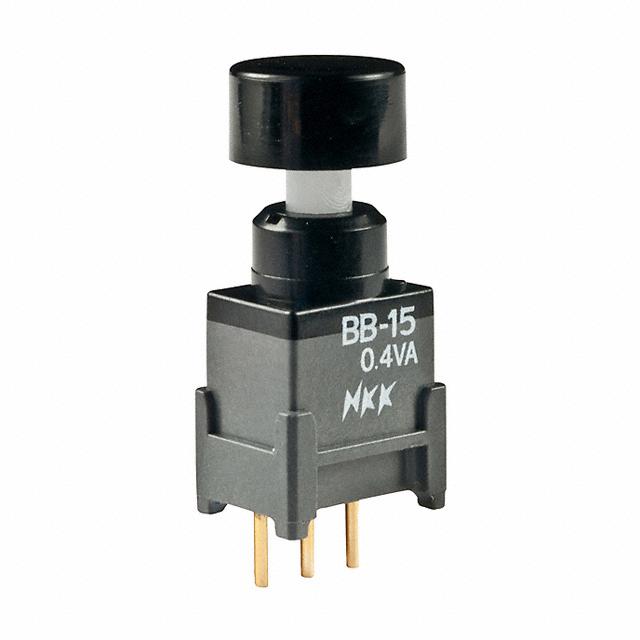

NKK SWITCHES  BB15AP-HA  按钮开关, 非发光, SPDT, 0.1A, 28VAC

BB Series pushbutton switches are designed for use in a low-voltage, low-current, logic-level circuit. When used as intended in a logic-level circuit, the results do not produce hazardous energy. The BB Series pushbuttons have not been tested for UL recognition or CSA certification.

得捷:
SWITCH PUSH SPDT 0.4VA 28V

e络盟:
按钮开关, 非发光, SPDT, 0.1A, 28VAC

艾睿:
Ideal for quick switching situations this BB15AP-HA push button switch manufactured from NKK Switches is a must. It has a SPDT configuration. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. This push switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The BB15AP-HA push switch has a PC pin termination style. This product is 8.8 mm long, 19.4 mm tall and 6.8 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.

Allied Electronics:
Switch; Sealed; Anti-Static P/B; SPDT; ON-ON; Straight PC; Black Cap; 0.4A; 28VAC/DC

Jameco:
SPDT ON-ON Sealed Subminiature Antistatic Momentary Pushbutton Switch

Chip1Stop:
Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole

Verical:
Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole

Newark:
# NKK SWITCHES  BB15AP-HA  Pushbutton Switch, SPDT, On-On, 28 V, 28 V, 100 mA, Through Hole

Powell:
SUBMINIATURE PUSHBUTTON/PC
