BB15AH-FA

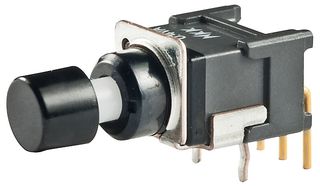

NKK SWITCHES  BB15AH-FA  按钮开关, 非发光, SPDT, 0.1A, 28VAC

按钮 SPDT 标准 通孔，直角

得捷:
SWITCH PUSH SPDT 0.4VA 28V

立创商城:
BB15AH-FA

e络盟:
NKK SWITCHES  BB15AH-FA  按钮开关, 非发光, SPDT, 0.1A, 28VAC

艾睿:
Quickly reset and disrupt processes by mechanically pressing this BB15AH-FA push button switch from NKK Switches. It has a SPDT configuration. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. This push switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The BB15AH-FA push switch has a PC pin termination style. This product is 8.8 mm long, 7.3 mm tall and 20.5 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.

Allied Electronics:
Switch, Toggle; SPDT Mom; PCB pins; 0.236 in. bushing dia; Black

Chip1Stop:
Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole

Verical:
Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole

Newark:
# NKK SWITCHES  BB15AH-FA  Pushbutton Switch, SPDT, On-On, 28 V, 28 V, 100 mA, Through Hole
