BZ-7RW822-A2

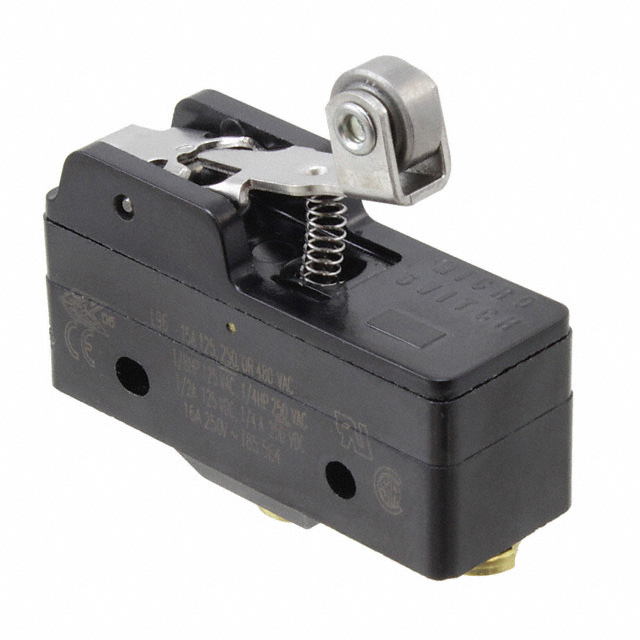

BZ-7RW822-A2图片1
BZ-7RW822-A2图片2
BZ-7RW822-A2图片3
BZ-7RW822-A2图片4
BZ-7RW822-A2图片5
BZ-7RW822-A2图片6
BZ-7RW822-A2图片7
BZ-7RW822-A2概述

MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, Split Contact Construction Allowing Two Isolated Circuits, 5A 250VAC, 12,7mm [0.5in] Threaded Bushing with 8,3mm [0.326in] Diameter Hardened Steel Additional Overtravel Plunger, Binding Head Combination Screw Termination with Integral Washer, Furnished with 1PA11 Hardware Packet, Mounting Holes will Accept Pins or Screws, UL, CSA

MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, Split Contact Construction Allowing Two Isolated Circuits, 5 A 250 Vac, 12,7 mm [0.50 in] Threaded Bushing with 8,3 mm [0.326 in] Diameter Hardened Steel Additional Overtravel Plunger, Binding Head Combination Screw Termination with Integral Washer, Furnished with 1PA11 Hardware Packet, Mounting Holes will Accept Pins or Screws, UL, CSA


贸泽:
Basic / Snap Action Switches BASIC SW SPDT 15 A


艾睿:
Switch Snap Action N.O./N.C. SPDT Roller Lever Screw 16A 480VAC 250VDC 186.42VA 1.95N Screw Mount


Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Roller Lever Screw 16A 480VAC 250VDC 186.42VA 1.95N Screw Mount


Verical:
Switch Snap Action N.O./N.C. SPDT Roller Lever 16A 480VAC 250VDC 186.42VA 1.95N Screw Mount Screw Automotive


Newark:
# HONEYWELL  BZ-7RW822-A2  Microswitch, SPDT, Screw, 15 A, 250 VAC


MASTER:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A 125/250 Vac, ENEC 16 A 250 Vac, 26,7 mm [1.050 in] Sintered Roller Lever Actuator, Binding Head Combination Screw Termination with Cup Washers, Mounting Holes wil


Online Components:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, Split Contact Construction Allowing Two Isolated Circuits, ...


Electro Sonic:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A 125/250 Vac, ENEC 16 A ...


BZ-7RW822-A2中文资料参数规格
技术参数

额定电压DC 250 V

接触器类型 Roller Lever

额定电压AC 250 V

额定电流 15 A

触点类型 SPDT

额定电流Max 16A @250VAC

额定功率Max 186.42 VA

工作温度Max 85 ℃

工作温度Min -55 ℃

额定电压DC Max 250 V

额定电压AC Max 480 V

封装参数

安装方式 Panel, Screw

外形尺寸

高度 43.66 mm

物理参数

触点材质 Silver

材质 Plastic

工作温度 -55℃ ~ 85℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509055

数据手册

在线购买BZ-7RW822-A2
型号: BZ-7RW822-A2
描述:MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, Split Contact Construction Allowing Two Isolated Circuits, 5A 250VAC, 12,7mm [0.5in] Threaded Bushing with 8,3mm [0.326in] Diameter Hardened Steel Additional Overtravel Plunger, Binding Head Combination Screw Termination with Integral Washer, Furnished with 1PA11 Hardware Packet, Mounting Holes will Accept Pins or Screws, UL, CSA
