B3W-1052

Omron B3W 1000 系列（6 mm 密封型）内部密封结构允许在焊接后用酒精溶剂浸泡清洗 咬接式触点结构，确保正向点击操作 ### 触控

轻触式 B3W 1000 系列（6 mm 密封型）

内部密封结构允许在焊接后用酒精溶剂浸泡清洗

咬接式触点结构，确保正向点击操作

### 触控

欧时:
### 轻触式开关 Omron B3W 1000 系列（6 mm 密封型）内部密封结构允许在焊接后用酒精溶剂浸泡清洗 咬接式触点结构，确保正向点击操作 ### 触控

立创商城:
开关

得捷:
SWITCH TACTILE SPST-NO 0.05A 24V

艾睿:

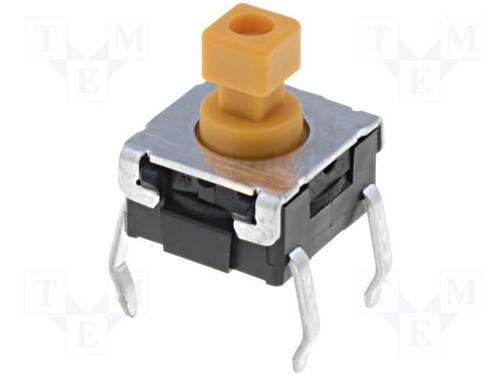

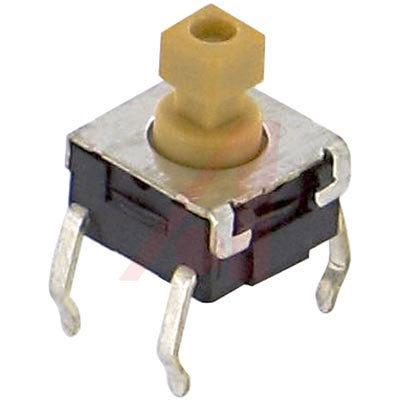

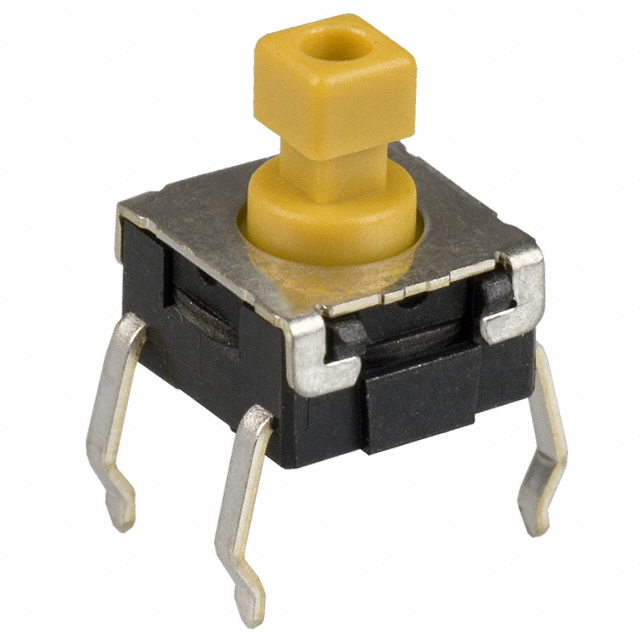

This B3W-1052 tactile switch from Omron will turn your system on and off when there is a change in pressure. This device has a maximum current rating of 0.05 A @ 24VDC. It has a SPST configuration. This tactile switch has a minimum operating temperature of -25 °C and a maximum of 70 °C. The B3W-1052 tactile switch has a PC pin termination style. This product is 6.6 mm long, 7.3 mm tall and 7.7 mm deep. The maximum DC voltage rating is 24 VDC. This yellow projected plunger actuator is 3.9 mm long.

Allied Electronics:
Switch, KEY, Sealed, MECHANICAL, SQUARE, NO GROUND TERM., PROJECTED PLUNGER

Chip1Stop:
Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 2.26N Thru-Hole Bag

TME:
Microswitch; 1-position; SPST-NO; 0.05A/24VDC; THT; 2.25N; 6x6mm

Verical:
Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 300000Cycles 2.26N Thru-Hole Bag

MASTER:
Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 300000Cycles 2.26N Thru-Hole Bag

Electro Sonic:
Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 300000Cycles 2.26N Thru-Hole Bag
