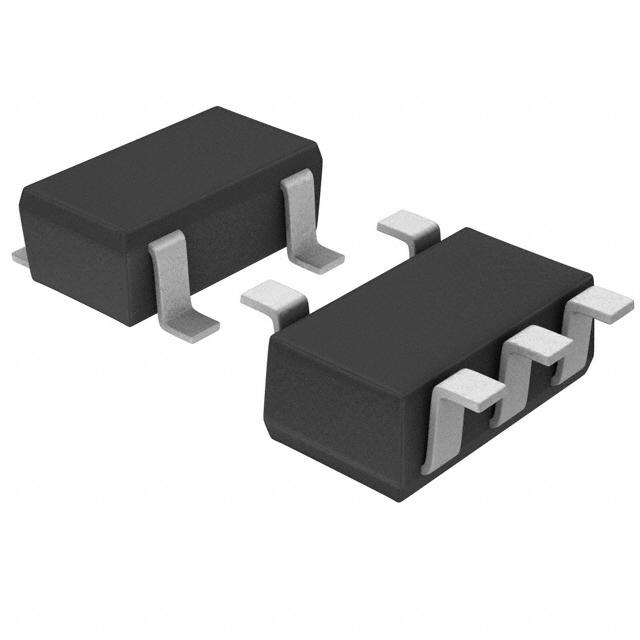

ROHM BU52025G-TR 霍尔效应传感器, 双极性, 1 mA, SSOP, 5 引脚, 2.4 V, 3.6 V
The is a bi-polar magnetic switch Detection Hall IC that can operate both S and N-pole, upon which the output goes from HIGH to LOW. In addition to the regular single-output hall ICs and offers line-up of dual-output units with a reverse output terminal.
- .
- Micro power operation
- .
- Dual output type
- .
- 8kV High ESD resistance
ESD sensitive device, take proper precaution while handling the device.
电源电压DC 2.40V min
输出电流 1 mA
供电电流 8 µA
针脚数 5
耗散功率 540 mW
输出电流Max 1 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 540 mW
电源电压 2.4V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.4 V
安装方式 Surface Mount
引脚数 5
封装 SSOP-5
高度 1.1 mm
封装 SSOP-5
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 消费电子产品, Consumer Electronics, Computers & Computer Peripherals, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
