1.8 V 3.5 uA 表面贴装 单极检测霍尔IC - HVSOF-5
The is a micropower operation Unipolar Detection Hall IC. The unipolar hall IC detects only either the N pole or S pole. The output turns ON active Low upon detection.
电源电压DC 1.65V min
输出电流 500 µA
供电电流 3.5 µA
耗散功率 536 mW
输出电流Max 500 µA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 536 mW
电源电压 1.65V ~ 3.3V
电源电压Max 3.3 V
电源电压Min 1.65 V
安装方式 Surface Mount

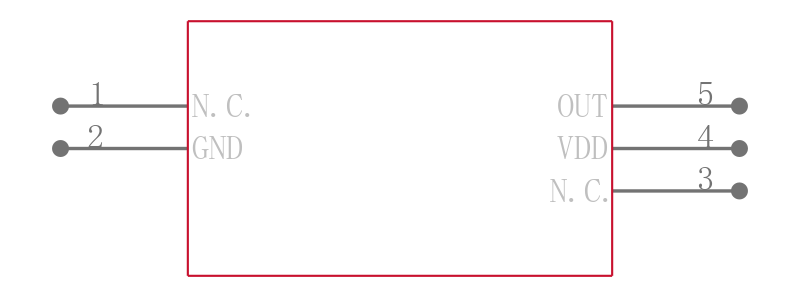

引脚数 5

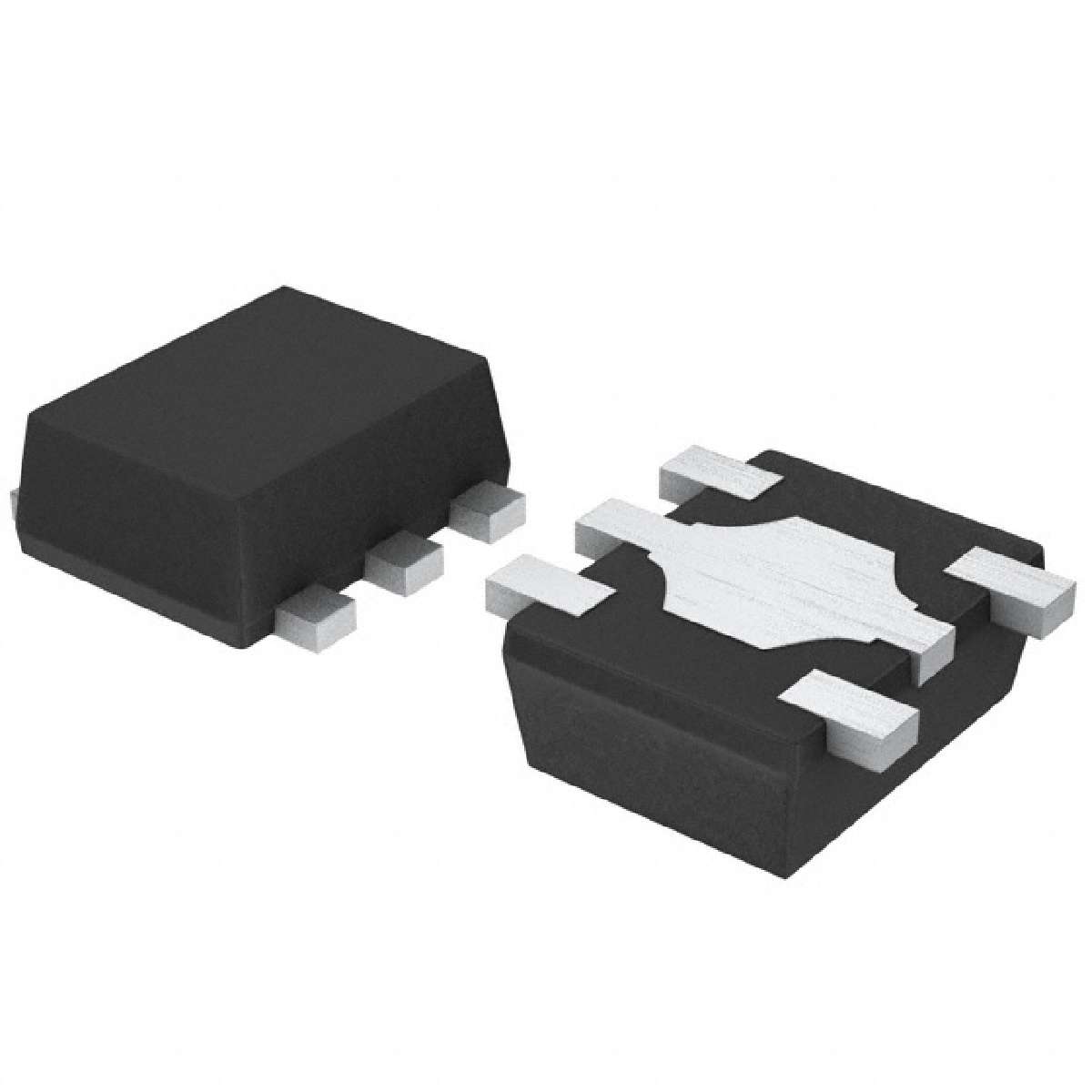

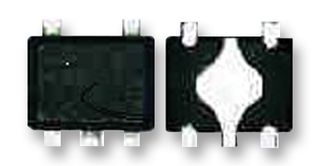

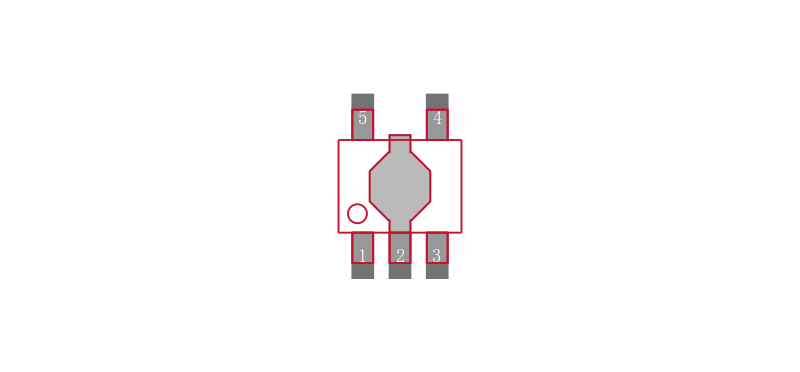

封装 HVSOF-5
封装 HVSOF-5
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Sensing & Instrumentation, Computers & Computer Peripherals, Communications & Networking, Imaging, Video & Vision, Imaging, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
香港进出口证 NLR
