开关, 轻触, SPST-常开, 50MA, THOUGH H
Through-hole mount tactile switch is ideal for high-density mounting, each incorporating a snap-action contact mechanism that ensures sharp switching operations.
得捷:
SWITCH TACTILE SPST-NO 0.05A 24V
立创商城:
开关
e络盟:
开关, 轻触, SPST-常开, 50MA, THOUGH H
艾睿:

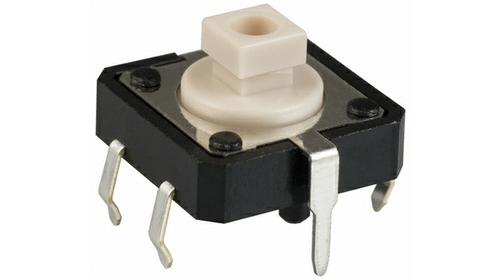

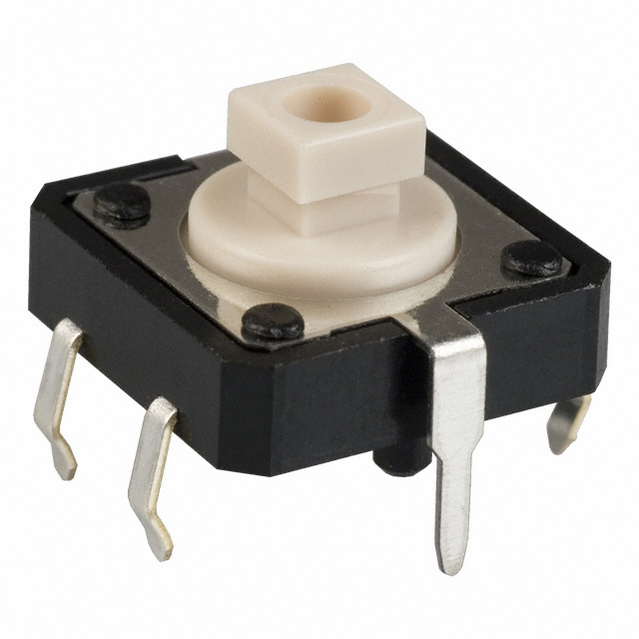

Turn on or off your circuit simply by applying pressure to this miniature B3F-4150 tactile switch from Omron. This device has a maximum current rating of 0.05 A @ 24VDC. It has a SPST configuration. This tactile switch has an operating temperature range of -25 °C to 70 °C. The B3F-4150 tactile switch has a PC pin termination style. This product is 13.2 mm long, 7.3 mm tall and 13.8 mm deep. The maximum DC voltage rating is 24 VDC. This blue projected plunger actuator is 3 mm long.
Allied Electronics:
SWITCH; TACTILE; MINIATURE; GENARAL PURPOSE 130G; 7.3 X 12.5 MM; W/ GROUND TERMI
Chip1Stop:
Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 1.27N Thru-Hole Bag
TME:
Microswitch; 1-position; SPST-NO; 0.05A/24VDC; THT; 1.27N; 12x12mm
Verical:
Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 1.27N Thru-Hole Bag
MASTER:
Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 1.27N Thru-Hole Bag
Electro Sonic:
Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 1.27N Thru-Hole Bag
触点电镀 Silver
额定电压DC 24 V
额定电流 50 mA
排数 2
方向 Vertical
触点类型 SPST-NO
触点额定电流 50.0 mA
额定电流Max 0.05A @24VDC
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压 24 VDC
接触电阻Max 100 mΩ
安装方式 Through Hole
封装 -
长度 12 mm
宽度 12 mm
高度 7.3 mm
封装 -
触点材质 Phosphor Bronze
工作温度 -25℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
